Do you need a TIG torch for your shop? Picking the right air cooled TIG torch matters. It depends on your job needs and material thickness. Gas Tungsten Arc Welding (GTAW)^[1], commonly known as TIG welding, is one of the most precise arc welding processes in use today — but only when paired with the right torch for the job.

Three common models rule the industry:

• WP-9: Made for precise low-power work up to 125A DC.

• WP-17: Made for flexible, medium-duty shop tasks up to 150A DC.

• WP-26: Made for heavy-duty factory welding up to 180A DC.

Professional Tip: You must weigh power against torch size and weight when selecting an air cooled TIG torch. High power cuts thick metal well. A light torch tires you less and gives you better control during detailed TIG welding jobs.

Evaluating WP-9, WP-17, and WP-26 Air Cooled TIG Torch Specs

You must compare facts to pick a torch. Each model helps your shop in different ways.

Amperage Ratings and Duty Cycles

Every torch has a strict heat limit. Too much power breaks internal copper parts fast. Knowing these limits protects your gear during work. Proper duty cycle management is also a core element of OSHA welding and cutting safety requirements^[2] — always ensure adequate ventilation and do not exceed rated operating intervals.

Low-Amperage Precision Performance

The small WP-9 TIG torch works great for delicate jobs. It reaches 125A DC and 80A AC maximum power. A 35% duty cycle offers 3.5 minutes of welding, then 6.5 minutes of rest. It keeps a steady arc on thin metal while the handle stays cool during work.

Mid-Range Fabrication Power

The flexible WP-17 gives extra heat for repair shops. It hits 150A DC and 120A AC ratings at a 35% duty cycle. You can weld thick frames with ease and make clean welds on medium steel.

Heavy-Duty Industrial Output

Big jobs need full electrical power without breaking. The heavy WP-26 manages strong heat on tough joints — 180A DC and 150A AC — while keeping a 35% duty cycle rating. You finish hard jobs safely without burning lines.

Torch Size and Ergonomics

Torch size changes how your hand feels. Pick cable lengths that fit your work area. Choose short 4m cables for tables; pick long 8m cables for moving around. Combined lines set up fast; separate gas lines replace easily.

Key Takeaway: A light torch stops hand pain and helps you stay steady on hard tasks throughout a full shift.

Compact Profile for Tight Spaces

The WP-9 uses a tiny head design. Its small body slips inside narrow pipes easily. You move this light tool without hand tiredness.

Standard Body Balance

The WP-17 TIG torch blends good size with cooling speed. It holds tungsten sizes from 0.5mm to 2.4mm. Welders like this grip for fast work and smooth, clean results.

Heavy-Duty Heat Dissipation Body

Thick copper adds weight to the WP-26 torch. This big model accepts 3.2mm tungsten and works well on thick metal plates. The heavy body sheds heat very fast for demanding tasks.

WP-9 TIG Torch Deep Dive

Small tools give total control on joints. The WP-9 leads in light, exact work. You move it easily around complex parts and your arm stays fresh all day long.

WP-9 Core Features and Capacities

This small tool uses a 2-Series head and maintains a very small size profile — ideal for precision sheet and pipe applications.

125A DC Rating and Technical Specs

This unit gives reliable 125A DC output, great for daily fine metal jobs. The 35% duty cycle allows short welding passes and prevents heat build-up inside the body.

BWT-III Ergonomic Handle Design

The BWT-III handle fits your hand well. A small handle stops cramps during long work. This smooth grip builds good operator balance so you can guide arc moves in every position.

Specialized WP-9 Configurations

Flexible Neck WP-9F and Pencil WP-9P

The WP-9F uses a bendable neck to adjust the head for hidden spots. The WP-9P pencil torch uses a straight neck — ideal for machine setups and tight pipes.

Integrated Gas Valve WP-9V and WP-9FV

The WP-9V puts a hand valve directly on the torch so you can turn gas on before starting the arc. The WP-9FV combines a valve with a flex head for maximum field flexibility.

Pro Tip: Use flex valve heads on field rigs to get manual gas control and easy joint access in one setup.

Best Applications and Limitations

Thin-Gauge Sheet and Delicate Repair

This tiny TIG torch shines on delicate sheets. Get smooth heat input on stainless tubes, and air-cooled performance aids accuracy on sheet metal. Precision auto shops frequently select this light model for fine work. For reference specifications, see standard air-cooled WP-9 package specifications^[3].

Thermal Limits on Continuous Passes

Low mass stops fast heat absorption. High amperage warms copper cores fast. Pushing past limits hurts cables quickly. Use bigger tools for thick metal plates.

WP-17 TIG Torch Deep Dive

The WP-17 TIG torch is a great shop tool. It balances light weight with good heat control, making it the standard choice for daily fabrication work.

WP-17 Core Features and Capacities

150A DC Rating and Technical Specs

This unit gives 150A DC output — enough to weld many metal sizes. You can run 120A AC for aluminum. A 35% duty cycle gives 3.5 minutes of work time per cycle.

Balanced Air-Cooled Heat Dissipation

Inner copper parts move heat away from your hand fast. The brass torch head stops heat damage. Air flows over the shell to keep it cool. Respecting limits stops burns and saves inner lines.

Versatile WP-17 Torch Body Options

Standard and Flexible WP-17F Variants

Hard heads stay steady on long flat tables. The WP-17F model uses a flexible neck to reach tight spots by bending the head angle to any required position.

Manual Gas Control WP-17V and WP-17FV

The WP-17V adds a hand valve for direct gas control before striking your arc. The WP-17FV combines flex heads with gas valves — maximum control on simple machines.

Shop Practical Note: A hand valve allows scratch-start work on basic arc machines without foot pedals.

Best Applications and Limitations

Automotive Repair and General Shop Work

Fix auto parts like exhaust pipes and roll cages with ease. This TIG torch works well on thin steel pipes and is a daily workhorse for auto builders.

Bulkiness Compared to Series 2 Torches

More power requires thicker copper and bigger handles. This model feels heavier than small 2-Series units, but the heavy body protects your hand from heat while delivering strong mid-range power.

WP-26 TIG Torch Deep Dive

Big jobs need high heat. The WP-26 handles hard shop tasks with high power while staying cool during long shop work.

WP-26 Core Features and Capacities

180A DC Rating and Technical Specs

This unit offers 180A DC with current flowing well through thick cables. The 35% duty cycle must be respected to protect inner parts. You can adjust current safely within set limits.

Maximum Tungsten Size Up to 3.2mm

The brass head holds large rods well — up to 3.2mm electrodes. According to industry consumable selection guidelines^[4], air-cooled 26-style torches can safely reach up to 250 amps in high-output configurations, making them among the most capable air-cooled designs available.

Heavy-Duty WP-26 Torch Variants

High-Amperage Flexible Head WP-26F

The WP-26F features a bendable neck for reaching hard joints at high power. You shape the head fast using your fingers to reach awkward angles.

Valve and Pencil Models WP-26V and WP-26P

The valve model adds a hand switch for gas control on simple rigs. The straight pencil model fits automatic welding arms and robotic setups.

Best Applications and Limitations

Heavy Plate and Structural Pipe Welding

Factory work needs high heat capacity. This model handles big power without burning. You make clean passes on structural pipe, thick aluminum plates, and large steel beams.

Industrial Workflow Tip: Use high-power air-cooled tools for quick passes on structural jobs. You eliminate water lines but keep strong output for most heavy welding tasks.

Operator Fatigue from Added Weight

Thick copper makes this tool heavy. Long overhead welds tire your arm fast — take short breaks during extended welding jobs. Pick the right tool for daily tasks to manage physical demands effectively.

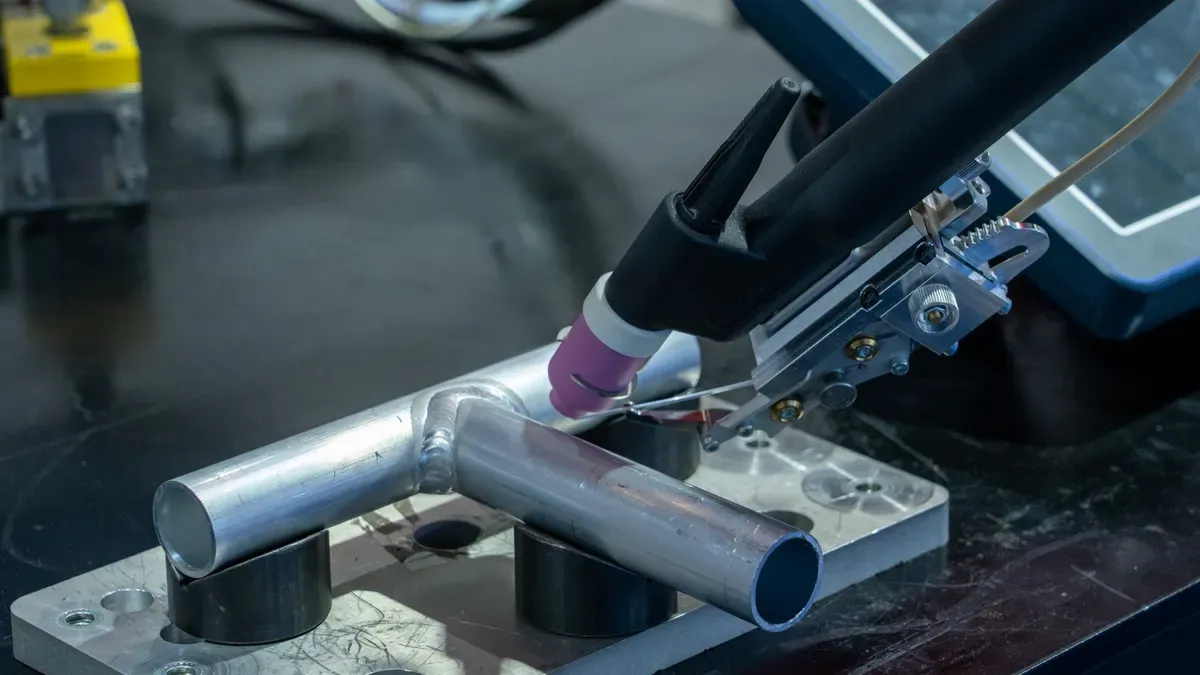

Consumable Compatibility Across Air-Cooled TIG Torches

You need correct parts for your tool. Matching parts improves gas coverage and arc control. Consumable series classification follows welding equipment standards recognized by the American Welding Society^[5], the leading professional body for welding standards worldwide.

Series 2 Consumables for WP-9

The WP-9 uses small 2-Series parts. These small parts reduce total weight and help you move easily near thin metals.

Small Diameter Collets and Gas Lenses

Small collets clamp tungsten electrodes firmly. Gas lenses replace standard collet bodies and create smooth shield gas flow — protecting reactive metals and keeping stainless steel clean from atmospheric contamination.

Swap small parts between models for the interchangeable range, which fits 0.5mm to 2.4mm tungsten across the WP-9, WP-17, and WP-26. Parts for 3.2mm to 4.0mm tungsten are non-interchangeable with the WP-9 — the head size is too small to accommodate them.

Alumina Cups and Specialty Nozzles

You thread ceramic cups onto bodies to guide shield gas over welds. Standard pink cups resist high heat well. Long nozzles provide direct line of sight and reach inside deep, tight grooves.

Series 3 Consumables for WP-17 and WP-26

The WP-17 and WP-26 share parts — both use heavy 3-Series components. Shared parts simplify your shop inventory significantly.

Shared Interchangeable Components

Caps, collets, and nozzles swap between both models directly. One supply set supports all medium and high power tasks, saving money on common supplies.

Standard vs. Stubby Gas Lens Kits

Standard parts handle high power well. Stubby gas lens kits reduce the overall torch profile^[6], giving extra clearance in tight spaces.

Stubby lenses shrink your heavy tool while keeping high power capability. This setup enables use of small 2-Series cups on a heavy torch — a major advantage for complex welding jobs.

Choosing a TIG Torch Based on Material and Power

Smart choices match machine output to metal thickness. Pick air cooled TIG torch units wisely for your daily heat requirements. As a general engineering guideline, mild steel requires approximately 30 amps per millimeter of thickness, while aluminum requires around 35 amps for good penetration. Safe tools must handle these heat loads within their rated specifications.

Matching Torch Rating to Machine Amperage

Power source output guides your tool choices. Proper setup stops early equipment failures.

140A–160A Inverter TIG Welders

Small inverters power light sheet metal work. The WP-9's 125A DC rating handles light jobs well — just observe the 35% duty cycle. Combine portable inverters with lightweight torches for mobile field applications.

200A AC/DC Workshop Machines

Repair shops use 200-amp power units daily. The WP-17 gives good mid-range power — 150A DC without torch damage — handling standard shop jobs very well, including thicker aluminum plate.

High-Output Industrial Inverters

Heavy shop setups run hot all day. The WP-26 handles high output at 180A DC. Thick copper handles long continuous joints well. Use water cooling for applications requiring 100% duty cycle.

Selecting Body Styles for Practical Workflows

Benchtop Precision vs. Field Installation

Bench work needs light tools for smoothness — use compact setups on shop workbenches. Outdoor field installation needs durable equipment. Air-cooled models excel during mobile work where water cooling is impractical.

Flex-Heads for Complex Joints

Rigid heads block access to narrow joints. Bend flex necks to reach tough angles and improve shield gas coverage. Maintain easy posture on awkward overhead welds without straining your wrist.

Gas Valve Handles for Scratch-Start

Basic power sources lack internal gas solenoids. Control argon flow manually using handle valves and open the valve before striking your arc. Manual valves effectively turn basic arc welders into TIG units — adjust amperage limits for each joint design.

Golden Globe TIG Solutions and Manufacturing

You need dependable gear for daily shop work. Golden Globe builds reliable tools with top manufacturing standards, producing gear ready for the most demanding welding projects.

Precision Engineering and Quality Standards

Patented Handle Ergonomics and Durability

Golden Globe equips torches with patented technology under Patent No. ZL202130291871.4. The modern BWT-III handle fits hands naturally, reducing muscle strain during long shifts. You control movement easily across complex joints without hand fatigue.

Ergonomic Tip: A balanced grip helps keep a steady arc. Good handle shapes stop hand tremors on thin metals during precision TIG work.

High-Flex Cables and Thermal Resistance

Golden Globe uses pure copper inside flexible sleeves. These cables resist hot sparks and rough shop floors. Tough builds deliver smooth arcs in daily work — you bend cables freely without hurting inner lines.

Custom OEM Solutions from Golden Globe

Golden Globe serves as a trusted wholesale partner with custom setups matched to your equipment lines.

• Cable Lengths: 4 meters (12.5 ft) or 8 meters (25 ft)

• Line Configurations: Integrated gas/power or separate lines

• Visual Customization: Custom handle colors & branding options

Complete Interchangeable Consumable Systems

Golden Globe makes full systems of matching parts you can swap easily across your torch stock:

• Long, medium, and short back caps

• Standard collets and collet bodies

• Gas lenses for smooth gas shielding

• Ceramic cups in various sizes

Standard threads simplify your parts stock. Adapt any air cooled TIG torch for thin or thick metal with Golden Globe's full accessory inventory.

Match the tool body to your job:

• WP-9: Best for small, precise jobs with light weight.

• WP-17: Great for common daily shop tasks.

• WP-26: Made for thick plate welding at high heat.

Check your machine output and duty cycle carefully. A big torch adds extra weight to your arm, so respecting heat limits keeps your gear safe for long shifts.

FAQ

Can you use Series 3 consumables on a WP-9 body?

Quick Tip: Always match component series sizes to your torch head design before starting work.

No. The compact WP-9 model uses smaller Series 2 consumables. You need a WP-17 or WP-26 to fit larger Series 3 components properly.

When should you choose an air-cooled model over water-cooled gear?

Air-cooled torch models work best for field repairs and portable projects under 200 amps. You avoid extra water lines, pumps, and heavy coolers. Switch to liquid cooling for factory runs or long high-amperage duty cycles.

How do you select between WP-17 and WP-26 models?

Select the lighter WP-17 for daily mid-range tasks up to 150A DC. Pick the heavier WP-26 for big structural welding jobs above 150A DC. Always match your torch to machine output and typical material thickness.

What advantage does a flexible head offer during operation?

Flexible torch necks bend into awkward spots, giving you line-of-sight on your work without straining your wrist. This flexibility improves arc control and reduces physical fatigue during complex pipe welding.

Why do some handles feature built-in manual gas valves?

Manual valves control shield gas flow on basic machines without internal gas solenoids. Turn the valve knob before striking an arc for scratch-start TIG. This simple design prevents gas waste on field rigs.
