BW 24KD Air cooled MIG/MAG welding torch
Rating:250A CO₂ 220A Mixed Gases
Duty cycle: 60%
Wire size:0.8~1.2 mm
0Rating:250A CO₂ 220A Mixed Gases
Duty cycle: 60%
Wire size:0.8~1.2 mm
Product Description
Patent Number: ZL202130291872.9
Compatible Torch and Parts For BINZEL

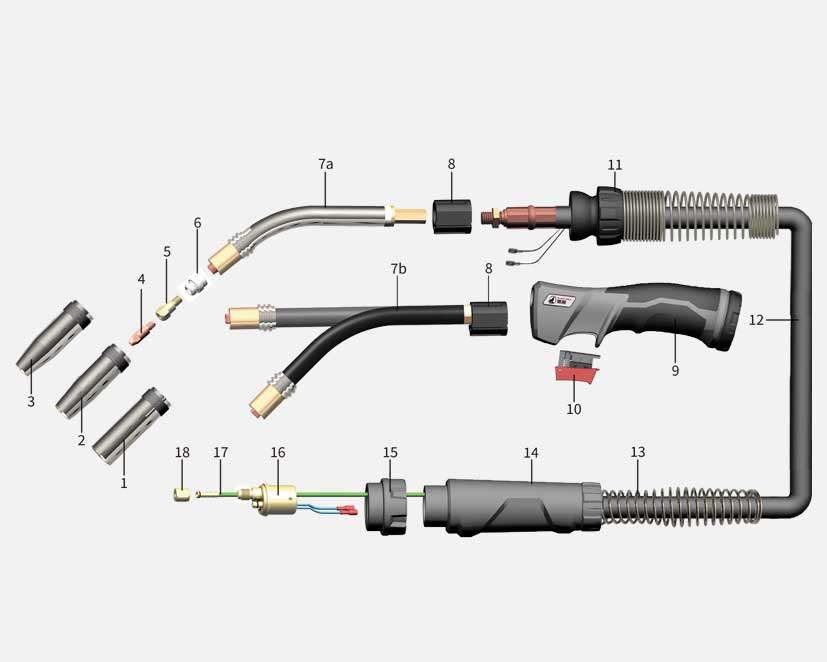

Product Specification
| No. | Order | Description | OEM p/n |
| MBZ0304.03 | BW 24KD Complete Torch (BWM-VI BLACK-GRAY) 3m | ||
| MBZ0305.05 | BW 24KD Complete Torch (BWM-VI BLACK-GRAY) 5m | ||
| 1 | MBZ0330.01 | Cylindrical Nozzle Ø17mm | 145.0047 |
| *2 | MBZ0330.02 | Conical Nozzle Ø12.5mm | 145.0080 |
| 3 | MBZ0330.03 | Tapered Nozzle Ø10mm | 145.0128 |
| *4 | MBZ0232.02 | M6x28x0.8 Contact Tip, E-Cu | 140.0051 |
| MBZ0232.04 | M6x28x1.0 Contact Tip, E-Cu | 140.0242 | |
| MBZ0332.01 | M6x28x1.2 Contact Tip, E-Cu | 140.0379 | |
| MBZ0233.02 | M6x28x0.8 Contact Tip, CuCrZr | 140.0054 | |
| MBZ0233.04 | M6x28x1.0 Contact Tip, CuCrZr | 140.0245 | |
| MBZ0333.01 | M6x28x1.2 Contact Tip, CuCrZ | 140.0382 | |
| 5 | MBZ0236 | Contact Tip Holder | 142.0003 |
| 6 | MBZ0239 | Gas Diffusor | 012.0183 |
| *7a | MBZ0343.01 | Swan Neck | 012.0245 |
| 7b | MBZ0343.02 | Flex Neck | |
| 8 | MBZ0144.01 | Plastic Nut | |
| 9 | MBZ0122.03 | Handle BWM-VI Black-Gray | |
| 10 | MBZ0195.02 | Switch | |
| 11 | MBZ0196.02 | Ball Joint Cable Support Spring | |
| 12 | MBZ0360.01 | Cable Assembly, 3m | |
| MBZ0360.02 | Cable Assembly, 5m | ||
| 13 | MBZ0197 | Cable Support Spring | |
| 14 | MBZ0171.02 | Cable Support Machine Side | |
| 15 | MBZ0170.02 | Adapter Nut | |
| 16 | MBZ0172 | Central Connector KZ-2 | 501.003 |
| 17 | MBZ0180.01.35 | Green Liner, For Wire Ø0.8-Ø1.0, 3.5m | |
| MBZ0180.01.55 | Green Liner, For Wire Ø0.8-Ø1.0, 5.5m | ||
| 18 | MBZ0173 | Nut M10×1 | 501.0082 |
BLACK WOLF is in no way affiliated with BINZEL. The parts advertised for sale are not genuine BINZEL parts, but are parts made for and by BLACK WOLF.
References to BINZEL machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine BINZEL parts in place of BLACK WOLF parts.
