BW PSF 505 Air Cooled MIG/MAG Welding Torches
Rating: 500A CO2 400A Mixed Gases
Duty Cycle: 60%
Wire Size: 1.2-2.0mm
0Rating: 500A CO2 400A Mixed Gases
Duty Cycle: 60%
Wire Size: 1.2-2.0mm
Product Description
Product Specification

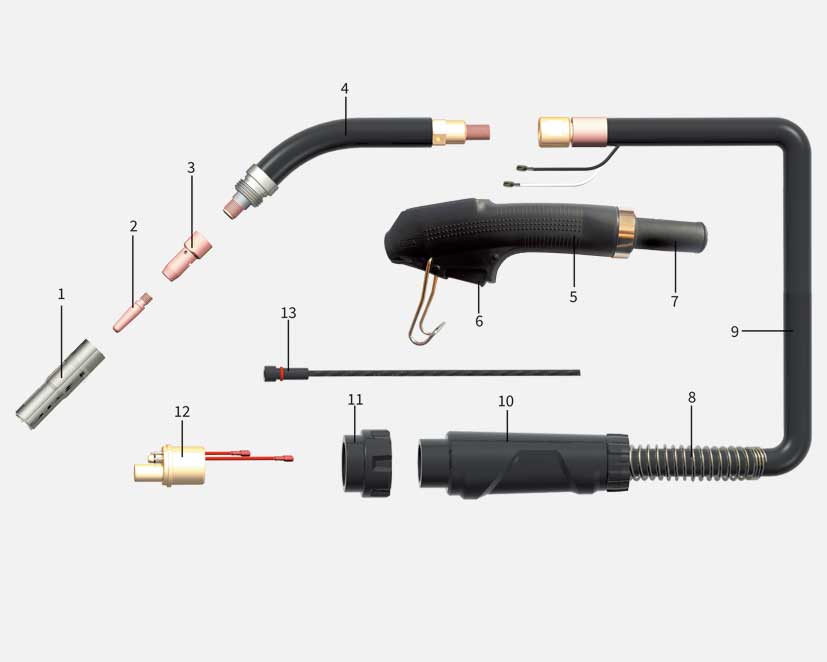

| No. | Order | Description | OEM p/n |
| MES0100.03 | BW PSF 505 Complete Torch 3m | ||
| MES0100.04 | BW PSF 505 Complete Torch 4m | ||
| 1 | MES0130 | Nozzle Ø18 | 0458 464 884 |
| *2 | MES0132.01 | M8×37×1.2 Contact Tip, CuCrZr | 0468502006 |
| MES0132.02 | M8×37×1.0 Contact Tip, CuCrZr | 0468502005 | |
| MES0132.03 | M8×37×1.4 Contact Tip, CuCrZr | 0468502008 | |
| MES0132.04 | M8×37×1.6 Contact Tip, CuCrZr | 0468502009 | |
| 3 | MES0135 | Contact Tip Holder | 0366 395 001 |
| 4 | MES0143 | Swan Neck | |
| 5 | MES0123.01 | Handle | |
| 6 | MES0123.02 | Switch | |
| 7 | MES0197.01 | Front Cable Support Sheath | |
| 8 | MBZ0897 | Back Cable Support Spring | |
| 9 | MES0160 | Cable Assembly | |
| 10 | MBZ0871.02 | Cover | |
| 11 | MBZ0170.02 | Adapter Nut | |
| 12 | MES0172 | Central Connector | |
| 13 | MBZ1185.01 | Liner, For WireØ1.2-1.6mm | |
| MBZ1185.02 | Liner, For WireØ1.0-1.2mm |
