BW 501D Liquid cooled MIG/MAG welding torch
Rating: 500A CO₂/450A Mixed Gases
Duty cycle: 100%
Wire size: 1.0~1.6mm
Duty cycle: 100%
Wire size: 1.0~1.6mm
0
Product Description
Patent Number: ZL202130291872.9
Compatible Torch and Parts For BINZEL
Product Specification

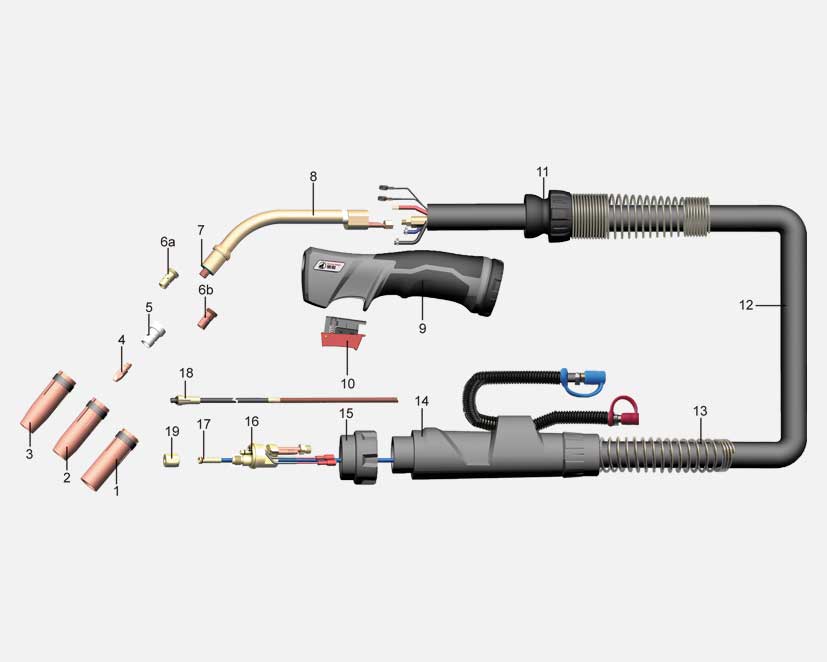

| No. | Order | Description | OEM p/n |
| MBZ0804.03 | BW 501D Complete Torch (BWM-VI BLACK-GRAY) 3m | ||
| MBZ0805.05 | BW 501D Complete Torch (BWM-VI BLACK-GRAY) 5m | ||
| 1 | MBZ0830.01 | Cylindrical Nozzle Ø19mm | 145.0051 |
| 2 | MBZ0830.02 | Conical Nozzle Ø16mm | 145.0085 |
| 3 | MBZ0830.03 | Tapered Nozzle Ø14mm | 145.0132 |
| 4 | MBZ0232.02 | M6x28x0.8 Contact Tip, E-Cu | 140.0051 |
| MBZ0232.04 | M6x28x1.0 Contact Tip, E-Cu | 140.0242 | |
| MBZ0332.01 | M6x28x1.2 Contact Tip, E-Cu | 140.0379 | |
| MBZ0832.01 | M6x28x1.6 Contact Tip, E-Cu | 140.0555 | |
| MBZ0133.02 | M6x28x0.8 Contact Tip, CuCrZr | 140.0054 | |
| MBZ0233.04 | M6x28x1.0 Contact Tip, CuCrZr | 140.0245 | |
| MBZ0333.01 | M6x28x1.2 Contact Tip, CuCrZr | 140.0382 | |
| MBZ0833.01 | M6x28x1.6 Contact Tip, CuCrZr | 140.0558 | |
| MBZ0532.01 | M8x30x0.8 Contact Tip, E-Cu | 140.0114 | |
| MBZ0532.02 | M8x30x1.0 Contact Tip, E-Cu | 140.0313 | |
| MBZ0532.03 | M8x30x1.2 Contact Tip, E-Cu | 140.0442 | |
| MBZ0732.01 | M8x30x1.6 Contact Tip, E-Cu | 140.0587 | |
| MBZ0533.01 | M8x30x0.8 Contact Tip, CuCrZr | 140.0117 | |
| MBZ0533.02 | M8x30x1.0 Contact Tip, CuCrZr | 140.0316 | |
| MBZ0533.03 | M8x30x1.2 Contact Tip, CuCrZr | 140.0445 | |
| MBZ0733.01 | M8x30x1.6 Contact Tip, CuCrZr | 140.0590 | |
| MBZ0334.01 | M6X28X0.8 Contact Tip, E-Cu For AI | 141.0001 | |
| MBZ0334.02 | M6X28X1.0 Contact Tip, E-Cu For AI | 141.0006 | |
| MBZ0334.03 | M6X28X1.2 Contact Tip, E-Cu For AI | 141.0010 | |
| MBZ0834.01 | M6X28X1.6 Contact Tip, E-Cu For AI | 141.0020 | |
| MBZ0834.02 | M8X30X0.8 Contact Tip, E-Cu For AI | 141.0003 | |
| MBZ0834.03 | M8X30X1.0 Contact Tip, E-Cu For AI | 141.0008 | |
| MBZ0834.04 | M8X30X1.2 Contact Tip, E-Cu For AI | 141.0015 | |
| MBZ0834.05 | M8X30X1.6 Contact Tip, E-Cu For AI | 141.0022 | |
| 5 | MBZ0839.01 | Gas Diffuser DMC | 030.0145 |
| MBZ0839.02 | Gas Diffuser Ceramic | 030.0190 | |
| 6a | MBZ0835.01 | Contact Tip Holder M6x25 Brass | 142.0008 |
| MBZ0835.03 | Contact Tip Holder M6x29 Brass | 142.0013 | |
| MBZ0835.05 | Contact Tip Holder M8x25 Brass | 142.0022 | |
| MBZ0835.07 | Contact Tip Holder M8x29 Brass | 142.0027 | |
| 6b | MBZ0835.02 | Contact Tip Holder M6x25 CuCrZr | |
| MBZ0835.04 | Contact Tip Holder M6x29 CuCrZr | ||
| MBZ0835.06 | Contact Tip Holder M8x25 CuCrZr | ||
| MBZ0835.08 | Contact Tip Holder M8x29 CuCrZr | ||
| 7 | MBZ0849 | Insulator | 030.0019 |
| 8 | MBZ0843 | Swan Neck | 034.0593.1 |
| 9 | MBZ0122.03 | Handle BWM-VI Black-Gray | |
| 10 | MBZ0195.02 | Switch | |
| 11 | MBZ0896.02 | Ball Joint Cable Support Spring | |
| 12 | MBZ0860.01 | Cable Assembly, 3m | |
| MBZ0860.02 | Cable Assembly, 5m | ||
| 13 | MBZ0897 | Back Cable Support Spring | |
| 14 | MBZ0871.02 | Cable Support Machine Side | |
| 15 | MBZ0170.02 | Adapter Nut | |
| 16 | MBZ0872 | Central Connector WZ-2 | |
| 17 | MBZ0680.02.35 | Blue Liner, For Wire Ø1.0-1.2, 3.5m | |
| MBZ0680.02.55 | Blue Liner, For Wire Ø1.0-1.2, 5.5m | ||
| 18 | MBZ0880.04.35 | Liner, For Alu Wire Ø1.6, 3.5m | |
| MBZ0880.04.55 | Liner, For Alu Wire Ø1.6, 5.5m | ||
| 19 | MBZ0173 | Nut M10x1 | 501.0082 |
BLACK WOLF is in no way affiliated with BINZEL. The parts advertised for sale are not genuine BINZEL parts, but are parts made for and by BLACK WOLF.
References to BINZEL machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine BINZEL parts in place of BLACK WOLF parts.
