BW 61GD Air Cooled MIG/MAG Welding Torches
Rating: 500A CO2 400A Mixed Gases
Duty Cycle: 60%
Wire Size: 1.6-3.2mm
0Rating: 500A CO2 400A Mixed Gases
Duty Cycle: 60%
Wire Size: 1.6-3.2mm
Product Description
Product Specification

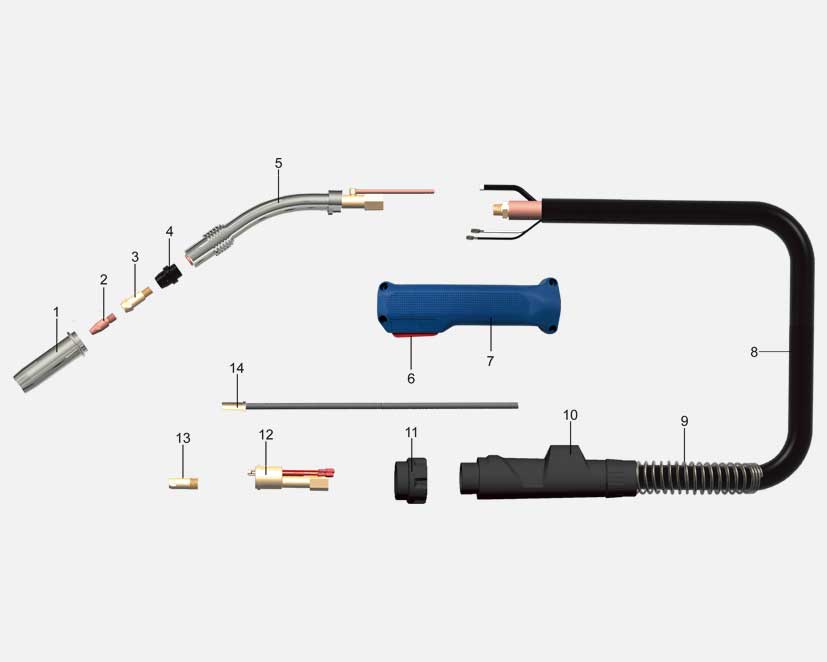

| No. | Order | Description | OEM p/n |
| MBZ1100.03 | BW 61GD Complete Torch 3m | ||
| MBZ1100.04 | BW 61GD Complete Torch 4m | ||
| 1 | MBZ1130.01 | Conical Nozzle Ø20 | 145.0081 |
| * | MBZ1130.02 | Cylindrical Nozzle Ø23 | 145.0048 |
| *2 | MBZ1132.01 | M10×35×1.6 Contact Tip, CuCrZr | 140.0616 |
| MBZ1132.02 | M10×35×2.0 Contact Tip, CuCrZr | 140.0665 | |
| MBZ1132.03 | M10×35×2.4 Contact Tip, CuCrZr | 140.0698 | |
| MBZ1132.04 | M10×35×2.8 Contact Tip, CuCrZr | 140.0712 | |
| MBZ1132.05 | M10×35×3.2 Contact Tip, CuCrZr | 140.0734 | |
| 3 | MBZ1135 | Contact Tip Holder | 142.0032 |
| 4 | MBZ1139 | Gas Diffusor | 013.0030 |
| 5 | MBZ1143 | Swan Neck | 013.0001 |
| 6 | MBZ0795.01 | Switch | |
| 7 | MBZ0723.02 | Handle | |
| 8 | MBZ1160.04 | Cable Assembly | |
| 9 | MBZ0897 | Back Cable Support Spring | |
| 10 | MBZ0871.02 | Cover | |
| 11 | MBZ0170.02 | Adapter Nut | |
| 12 | MBZ1172 | Central Connector | |
| 13 | MBZ1173 | Nut | |
| 14 | MBZ1185.01 | Liner,For WireØ2.8-6.3mm, 3m | 122.0066 |
| MBZ1185.02 | Liner,For WireØ2.8-6.3mm, 4m | 122.0067 | |
| MBZ1185.03 | Liner,For WireØ3.5-7.0mm, 3m | 122.0079 | |
| MBZ1185.04 | Liner,For WireØ3.5-7.0mm, 4m | 122.0080 | |
| MBZ1185.05 | Liner,For WireØ4.5-7.0mm, 3m | 122.0083 | |
| MBZ1185.06 | Liner,For WireØ4.5-7.0mm, 4m | 122.0084 |
* Standard configuration
