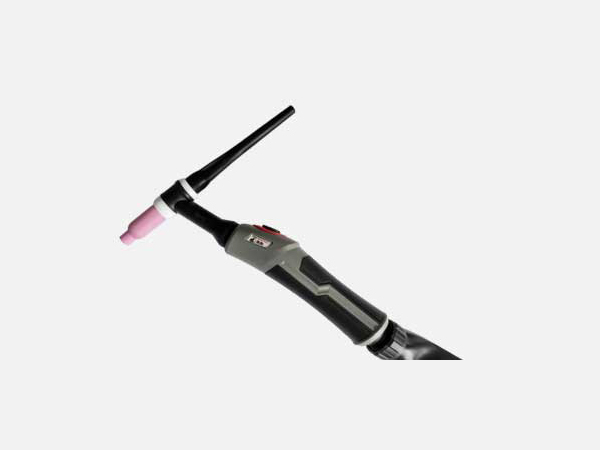

BW WP18SC Liquid Cooled TIG Torches
Rating: 410A DC 290A AC
Duty Cycle: 100%
Tungsten rod:1.0-4.8mm
0Rating: 410A DC 290A AC
Duty Cycle: 100%
Tungsten rod:1.0-4.8mm
Product Description
Product Specification
| No. | Order | Standard No. | |
| TWP0800.04 | WP-18SC Torch (（BWT-III Handle BLACK-GRAY)4m (12.5 feet） | WP-18SC (4m) | |
| TWP0801.08 | WP-18SC Torch (（BWT-III Handle BLACK-GRAY)8m (25 feet） | WP-18SC (8m) | |
| 1 | TWP0810 | Torch Body | WP-18SC |
| 2a | TWP0230.01 | Long Back Cap | 57Y02 |
| 2b | TWP0230.02 | Medium Back Cap | 300M |
| 2c | TWP0230.03 | Short Back Cap | 57Y04 |
| 3a | TWP0832.01 | Long Collet | 10N25HD,3.2mm |
| TWP0832.02 | Long Collet | 54N20HD,4.0mm | |
| TWP0832.03 | Long Collet | 18C36,4.8mm | |
| 3b | TWP0832.04 | Collet | 10N22,1.0mm |
| TWP0232.03 | Collet | 10N23,1.6mm | |
| TWP0832.07 | Collet | 10N23M,2.0mm | |
| TWP0232.04 | Collet | 10N24,2.4mm | |
| TWP0332.01 | Collet | 10N25,3.2mm | |
| TWP0832.08 | Collet | 54N20,4.0mm | |
| 4 | TWP0833.01 | Collet Body | NCB-53,3.4mm |
| TWP0833.02 | Collet Body | NCB-36,5.0mm | |
| 5a | TWP0235.19 | Extra Long Ceramic Nozzle | 54N15L,11mm |
| TWP0235.18 | Extra Long Ceramic Nozzle | 54N16L,10mm | |
| TWP0235.17 | Extra Long Ceramic Nozzle | 54N17L,8mm | |
| 5b | TWP0235.15 | Ceramic Nozzle | 54N14,13mm |
| TWP0235.14 | Ceramic Nozzle | 54N15,11mm | |
| TWP0235.13 | Ceramic Nozzle | 54N16,10mm | |
| TWP0235.12 | Ceramic Nozzle | 54N17,8mm | |
| TWP0235.11 | Ceramic Nozzle | 54N18,6mm | |
| TWP0235.10 | Ceramic Nozzle | 54N19,17mm | |
| 6 | TWP0124.01 | Swith | |
| 7 | TWP0320.03 | Handle BWT-III(Black-Gray) | |
| 8 | TWP08351 | Cable Assembly Cover | |
| 9 | TWP08350 | Cable Assembly |
