LZHQ-12 Lite Short Cycle Drawn Arc Stud Welding Gun
Welding Range: Ø3-Ø12mm
Stud Range: 10-400mm
Length Compensation: 0-3mm
Lift Range: 0-3mm
Input Voltage: 60V
Welding Current: <1000A
Welding Time: <100ms
0Welding Range: Ø3-Ø12mm
Stud Range: 10-400mm
Length Compensation: 0-3mm
Lift Range: 0-3mm
Input Voltage: 60V
Welding Current: <1000A
Welding Time: <100ms
Product Description
Patent Number; ZL202120515893.9/ZL202130131202.0
Compatibe Gun and Parts For HBS
Product Specification

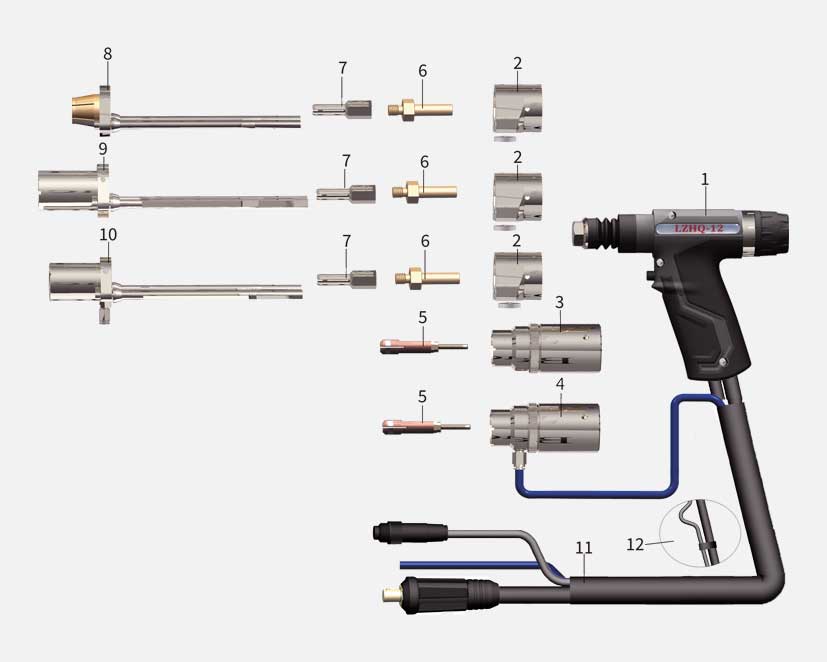

| No. | Order | Description |
| SHS0300.05 | LZHQ-12 Complete Torch 5m | |
| 1 | SHS0300.05 | Stud Welding Torch Head |
| 2 | SHS0334 | Surpport Ring (Optional) |
| 3 | SHS0335.01 | Centering Tube Assembly (Optional) |
| 4 | SHS0335.02 | Centering Tube Assembly With Gas (Optional) |
| 5 | SBW0232.01 | Chuck M3 |
| SBW0232.02 | Chuck M4 | |
| SBW0232.03 | Chuck M5 | |
| SBW0232.04 | Chuck M6 | |
| SBW0232.05 | Chuck M8 | |
| SBW0232.06 | Chuck M10 | |
| 6 | SHS0343 | Adaptor For Arc Chuck |
| 7 | SKO0332.01 | Chuck Arc M3 |
| SKO0332.02 | Chuck Arc M4 | |
| SKO0332.03 | Chuck Arc M5 | |
| SKO0332.04 | Chuck Arc M6 | |
| SKO0332.05 | Chuck Arc M8 | |
| SKO0332.06 | Chuck Arc M10 | |
| SKO0332.07 | Chuck Arc M12 | |
| 8 | SHS0336.01 | Ceramic Ring Shroud Leg Assembly For Drawn Arc（Ceramic Ring Chuck M6） |
| SHS0336.02 | Ceramic Ring Shroud Leg Assembly For Drawn Arc（Ceramic Ring Chuck M8） | |
| SHS0336.03 | Ceramic Ring Shroud Leg Assembly For Drawn Arc（Ceramic Ring Chuck M10） | |
| SHS0336.04 | Ceramic Ring Shroud Leg Assembly For Drawn Arc（Ceramic Ring Chuck M12） | |
| 9 | SHS0336.05 | Shroud Leg Assembly For Drawn Arc (Optional) |
| 10 | SHS0336.06 | Shroud Leg Assembly With Gas For Drawn Arc(Optional) |
| 11 | SHS0373.01 | Ventilation Cable Assembly, 5m(Optional) |
| 12 | SHS0373.02 | Cable Assembly, 5m(Optional) |
BLACK WOLF is in no way affiliated with HBS. The parts advertises for sale are not genuine HBS parts, but are parts made for and by BLACK WOLF.
References to HBS machines, torches, and numbers are for your convenience only. We reserve the right to substiture genuine HBS parts in place of BLACK WOLF parts.
Performance parameter
Welding Range: φ3-φ12mm
Length Compensation: 0-3mm
Lift Range: 0-3mm
Stud Range: 10-400mm
Input Voltage: 60V
Welding current:<1000A
Welding time:<100ms
Handles（Color and style can be customized）
