BW PT-100/BW PT-100P Without High Frequency Air Cooled Plasma Cutting Torches
Standard Length:4m
Air Pressure:4.8-5.5bar
Duty Cycle 60%:100A
0Standard Length:4m
Air Pressure:4.8-5.5bar
Duty Cycle 60%:100A
Product Description
Compatible torch and parts for TECMO
Product Specification

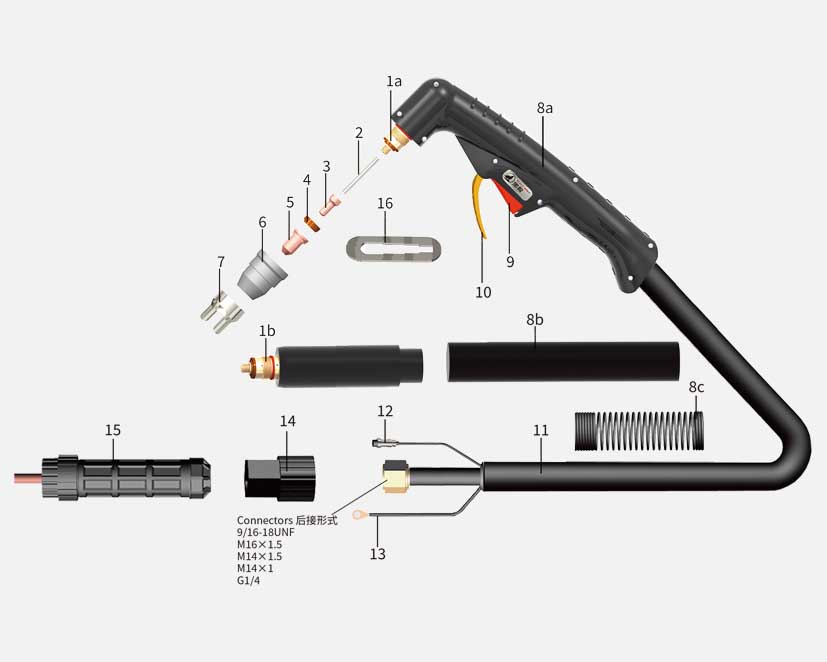

| No. | Order | Description | OEM |
| PTC0500.04 | BW PT-100 Hand Torch 4m | ||
| PTC0501.04 | BW PT-100P Auto Torch 4m | ||
| 1a | PTC0510.01 | BW PT-100 Hand Torch Head | |
| 1b | PTC0510.02 | BW PT-100P Auto Torch Head | |
| 2 | PTC0530 | Gas Tube | |
| 3 | PTC0531 | Electrode | |
| 4 | PTC0536.01 | Swirl Ring 30-70A | |
| * | PTC0536.02 | Swirl Ring 30A-120A | |
| 5a | PTC0532.01 | Nozzle 1.0mm 40A-50A | |
| PTC0532.02 | Nozzle 1.1mm 50A-60A | ||
| PTC0532.03 | Nozzle 1.2mm 60A-70A | ||
| PTC0532.04 | Nozzle 1.4mm 80A-90A | ||
| PTC0532.05 | Nozzle 1.5mm 100A | ||
| * | PTC0532.06 | Nozzle 1.6mm 100A-120A | |
| 5b | PTC0532.07 | Contact Cutting Nozzle 1.0mm 40A-50A | |
| PTC0532.08 | Contact Cutting Nozzle 1.1mm 50-60A | ||
| PTC0532.09 | Contact Cutting Nozzle 1.2mm 60-70A | ||
| PTC0532.10 | Contact Cutting Nozzle 1.4mm 80-90A | ||
| PTC0532.11 | Contact Cutting Nozzle 1.5mm 100A | ||
| 6a | PTC0524.01 | Shield 30A-70A | |
| * | PTC0524.02 | Shield 30A-120A | |
| 6b-1 | PTC0524.03 | Contact Cutting Shield Body | |
| 6b-2 | PTC0524.04 | Contact Cutting Shield Cup | |
| 7 | PTC0539 | Double Pointed Spacer | |
| 8 | PTC0520 | Manual Handle | |
| 9 | MBZ0195 | Switch | |
| 10 | PTC0220.01 | Protection Block For Switch | |
| 11 | PTC0551.01 | Cable Assembly | |
| 12 | PPA0171 | 2-Pins Plug | |
| 13 | PPA0169 | Pilot Arc Wire | |
| 14 | PPA0170 | Protection Nut | |
| 15 | PTF0272 | Central Adaptor | |
| 16 | PTC013A | Spanner |
* Standard configuration
NOTE: Please specify the connector when ordering.
BLACK WOLF is in no way affiliated with TECMO. The parts advertised for sale are not genuine TECMO parts, but are parts made for and by BLACK WOLF.
References to TECMO machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine TECMO parts in place of BLACK WOLF parts.
Performance parameter
Standard Length: 5m
Air Pressure: 4.8-5.5bar
Duty Cycle 60%: 100A
