BW S-45 Without High Frequency air cooled plasma cutting torch
Standard Length: 5m
Air Pressure: 4.5-5.5bar
Duty Cycle 60%: 40A
0Standard Length: 5m
Air Pressure: 4.5-5.5bar
Duty Cycle 60%: 40A
Product Description
Compatible Torch and Parts For TRAFIMET

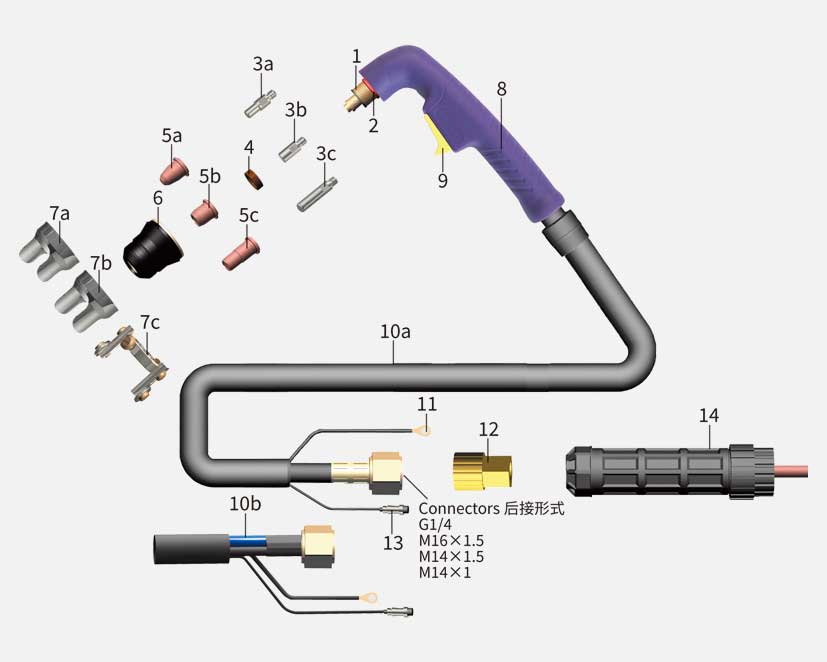

Product Specification
| No. | Order | Description | OEM p/n |
| PTF0400.05 | BW S-45 Hand Torch G1/4, 5m | ||
| PTF0401.05 | BW S-45 Hand Torch M16×1.5, 5m | ||
| PTF0402.05 | BW S-45 Hand Torch M14×1.5, 5m | ||
| PTF0403.05 | BW S-45 Hand Torch M14×1, 5m | ||
| PTF0404.05 | BW S-45 Hand Torch Central Adaptor, 5m | ||
| 1 | PTF0410 | BW S-45 Hand Torch Head | |
| 2 | PTF0413 | O-Ring | EA0330 |
| *3a | PTF0431.01 | Electrode L=29.1 | PR0110 |
| 3b | PTF0431.02 | Electrode L=17.8 | PR0105 |
| 3c | PTF0431.03 | Electrode L=30.5 | PR0106 |
| 4 | PTF0436 | Swirl Ring | PE0106 |
| 5a | PTF0432.01 | Nozzle 0.6mm 20A | PD0116-06 |
| * | PTF0432.02 | Nozzle 0.8mm 30A | PD0116-08 |
| PTF0432.03 | Nozzle 0.9mm 40A | PD0116-09 | |
| PTF0432.04 | Nozzle 1.0mm 45A | ||
| PTF0432.05 | Nozzle 1.1mm 60A | ||
| 5b | PTF0432.05 | Nozzle 1.0mm 50A | PD0102-10 |
| 5c | PTF0432.06 | Nozzle 0.9mm 40A | PD0103-09 |
| 6 | PTF0434.01 | Shield (4 Holes) | |
| PTF0434.02 | Shield (6 Holes) | PC0116 | |
| 7a | PTF0439.01 | Spacer Spring | |
| 7b | PTF0439.03 | Short Spacer Spring | |
| 7c | PTF0439.02 | Stand Off Guide | |
| 8 | PTF0420 | Handle | TP0080 |
| 9 | PTF0224 | Switch | |
| 10a | PTF0450 | Gas Electrode Integrated Cable Assembly | |
| 10b | PTF0451 | Gas Electrode Separation Cable Assembly | |
| 11 | 258 | Pilot Arc Wire | |
| 12 | PPA0170 | Protection Nut | |
| 13 | PPA0171 | 2-Pins Plug | |
| 14 | PTF0272 | Central Adaptor | FY0023 |
* Standard configuration
NOTE: Please specify the connector when ordering.
BLACK WOLF is in no way affiliated with TRAFIMET. The parts advertised for sale are not genuine TRAFIMET parts, but are parts made for and by BLACK WOLF.
References to TRAFIMET machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine TRAFIMET parts in place of BLACK WOLF parts.
Performance parameter
Standard length: 5M
Air pressure: 4.5-5.5bar
Duty cycle 60%: 40A
