#4 Air cooled MIG/MAG welding torch
Rating :400A CO₂/350A Mixed Gases
Duty cycle:60%
Wire size:0.8~2.0 mm
0
Product Description
Compatible Torch and Parts For TWC
Product Specification

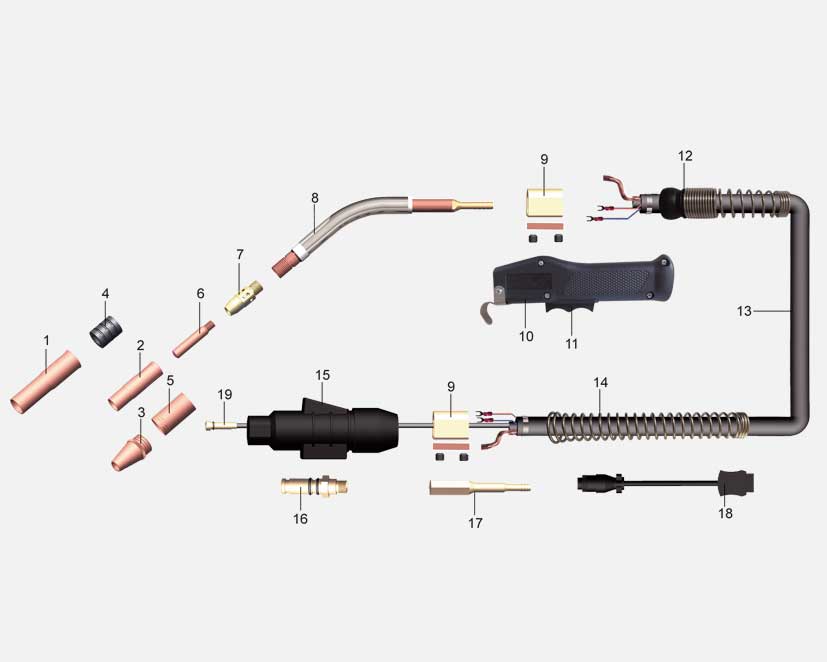

| No. | Order | Description | OEM p/n |
| MTW0300.03 | BW #4 Complete Torch 3m | NT4-3L | |
| MTW0301.05 | BW #4 Complete Torch 5m | NT4-5L | |
| 1 | MTW0130.04 | Nozzle 1/2” Ø12.7 L=88 | 24A50 |
| MTW0130.06 | Nozzle 5/8” Ø15.9 L=88 | 24A62 | |
| MTW0130.07 | Nozzle 3/4” Ø19 L=88 | 24A75 | |
| MTW0130.05 | Nozzle 1/2” Ø12.7 L=88 | 24A50SS | |
| MTW0130.08 | Nozzle 3/4” Ø19 L=88 | 24A75SS | |
| 2 | MTW0130.09 | Nozzle 3/8” Ø9.5 L=82 | 23-37 |
| MTW0130.11 | Nozzle 1/2” Ø12.7 L=82 | 23-50 | |
| MTW0130.13 | Nozzle 5/8” Ø15.9 L=82 | 23-62 | |
| MTW0130.15 | Nozzle 3/4” Ø19 L=82 | 23-75 | |
| MTW0130.10 | Nozzle 3/8” Ø9.5 L=79 | 23-37F | |
| MTW0130.12 | Nozzle 1/2” Ø12.7 L=79 | 23-50F | |
| MTW0130.14 | Nozzle 5/8” Ø15.9 L=79 | 23-62F | |
| MTW0130.16 | Nozzle 3/4” Ø19 L=79 | 23-75F | |
| 3 | MTW0130.17 | Nozzle 3/8” Ø12.7 L=44.5 | 24CT37S |
| MTW0130.18 | Nozzle 1/2” Ø15.9 L=44.5 | 24CT50S | |
| MTW0130.19 | Nozzle 5/8” Ø19 L=44.5 | 24CT62S | |
| MTW0130.20 | Nozzle 3/4” Ø12.7 L=44.5 | 24CT75S | |
| 4 | MTW0140.01 | Insulator | 34A |
| 5 | MTW0140.02 | Insulator | 34CT |
| 6 | MTW0132.01 | Contact Tip 0.8 | 14-23 |
| MTW0132.02 | Contact Tip 1.0 | 14-30 | |
| MTW0132.03 | Contact Tip 1.1 | 14-35 | |
| MTW0132.04 | Contact Tip 1.2 | 14-40 | |
| MTW0132.05 | Contact Tip 1.4 | 14-45 | |
| MTW0132.06 | Contact Tip 1.6 | 14-52 | |
| MTW0132.07 | Contact Tip 1.8 | 14-116 | |
| MTW0132.08 | Contact Tip 2.2 | 14-564 | |
| MTW0132.09 | Contact Tip 1.1 | 14H35 | |
| MTW0132.10 | Contact Tip 1.2 | 14H40 | |
| MTW0132.11 | Contact Tip 1.4 | 14H45 | |
| MTW0132.12 | Contact Tip 1.6 | 14H52 | |
| MTW0132.13 | Contact Tip 1.8 | 14H116 | |
| MTW0132.14 | Contact Tip 2.3 | 14H564 | |
| 7 | MTW0236 | Contact Tip Holder | 54A |
| 8 | MTW0343 | Swan Neck | 64J-45 |
| 9 | MTW0445 | Cable Connector Block Assembly | |
| 10 | MTW032E | Handle | |
| 11 | MTW0395.08 | Switch | |
| 12 | MBZ0896 | Front Cable Support Spring | |
| 13 | MTW0360.01 | Cable Assembly, 3m | |
| MTW0360.02 | Cable Assembly, 5m | ||
| 14 | MTW0197 | Back Cable Support Spring | |
| 15 | MTW0171 | Support Adapter | |
| 16 | MTW0375 | Cable Connector Rear | |
| 17 | MTW0377 | Connector Plug | |
| 18 | MTW0178 | Control Line Assembly | |
| 19 | MTM0283.02F | Liner, For Wire Ø0.8-2.0, 3.5m | |
| MTM0283.02G | Liner, For Wire Ø0.8-2.0, 5.5m |
References to TWECO machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine TWECO parts in place of BLACK WOLF parts.BLACK WOLF is in no way affiliated with TWECO. The parts advertised for sale are not genuine TWECO parts, but are parts made for and by BLACK WOLF.
