BW 200 Liquid cooled plasma cutting torch
Standard Length: 5m
Air Pressure: 3.5-6.0bar
Duty Cycle 100%: 200A
0Standard Length: 5m
Air Pressure: 3.5-6.0bar
Duty Cycle 100%: 200A
Product Description
Product Specification

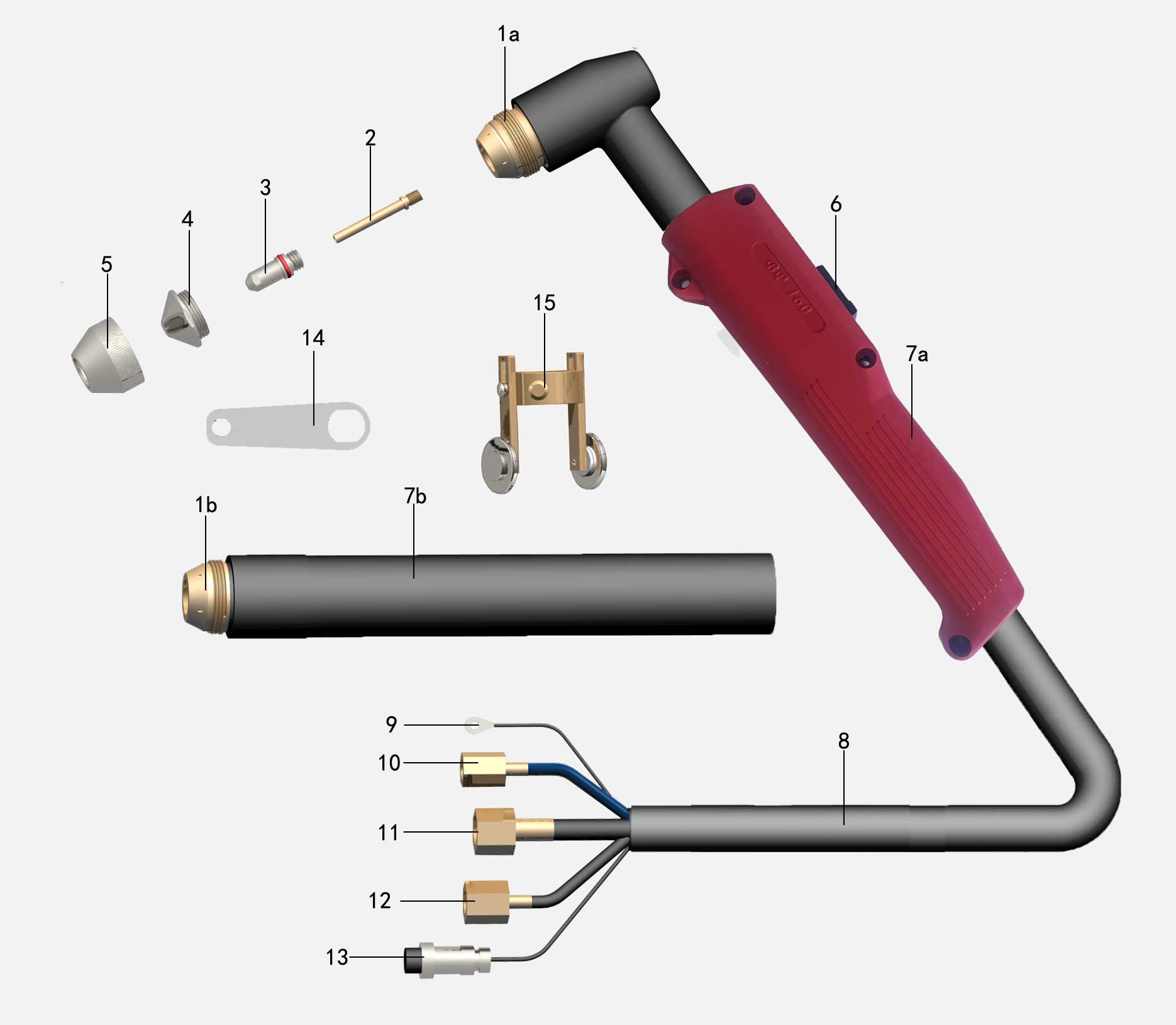

| No. | Order | Description |
| PBW1200.05 | BW 200 Hand Torch, 5m | |
| PBW1201.05 | BW 200P Auto Torch, 5m | |
| 1a | PBW1211.01 | BW 200 Hand Torch Head |
| 1b | PBW1211.02 | BW 200P Auto Torch Head |
| 2 | PBW0130 | Water Cooling Tube |
| 3 | PBW1231 | Electrode |
| 4 | PBW1332.01 | Nozzle 1.9mm 160A |
| PBW1232.02 | Nozzle 2.1mm 180A | |
| * | PBW1232.03 | Nozzle 2.3mm 200A |
| 5 | PBW1234 | Shield |
| 6 | PPA0124 | Swith |
| 7a | PBW1220 | Hand Torch Handle |
| 7b | PBW1221 | Auto Torch Handle |
| 8 | PBW1250 | Cable Assembly |
| 9 | PPA0172 | Pilot Arc Wire |
| 10 | PBW1277 | Protective-gas Hose |
| 11 | PBW1276 | Water Inlet Cable |
| 12 | PBW1278 | Water Outlet Pipe |
| 13 | PBW1275 | Control Line |
| 14 | PBW013A | Spanner |
| 15 | PPA0138 | Stand Off Guide |
* Standard configuration
NOTE: Please specify the connector when ordering.
Performance parameter
Standard length: 5M
Air pressure: 3.5-6.0bar
Duty cycle 100%: 200A
