BW 26KD Air cooled MIG/MAG welding torch
Rating: 230A CO2/200A Mixed Gases
Duty cycle: 35%
Wire size: 0.8~1.2 mm
0Rating: 230A CO2/200A Mixed Gases
Duty cycle: 35%
Wire size: 0.8~1.2 mm
Product Description
Patent Number: ZL202130291872.9
Compatible Torch And Parts For BINZEL

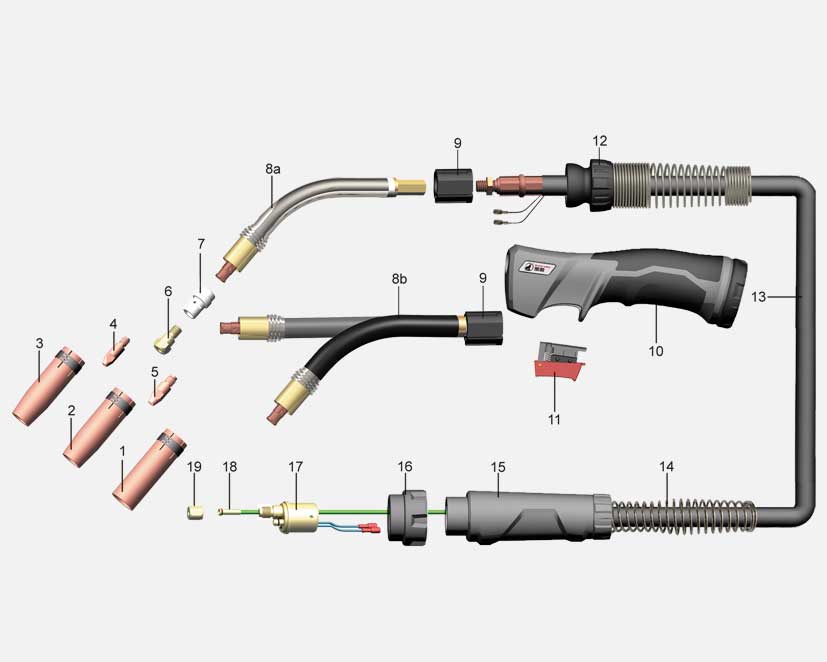

Product Specification
| No. | Order | Description | OEM p/n |
| MBZ0504.03 | BW 26KD Complete Torch (BWM-VI BLACK-GRAY) 3m | ||
| MBZ0505.05 | BW 26KD Complete Torch (BWM-VI BLACK-GRAY) 5m | ||
| 1 | MBZ0530.01 | Cylindrical Nozzle Ø20mm | 145.0051 |
| *2 | MBZ0530.02 | Conical Nozzle Ø16mm | 145.0085 |
| 3 | MBZ0530.03 | Tapered Nozzle Ø14mm | 145.0132 |
| *4 | MBZ0232.02 | M6x28x0.8 Contact Tip, E-Cu | 140.0051 |
| MBZ0232.04 | M6x28x1.0 Contact Tip, E-Cu | 140.0242 | |
| MBZ0332.01 | M6x28x1.2 Contact Tip, E-Cu | 140.0379 | |
| MBZ0233.02 | M6x28x0.8 Contact Tip, CuCrZr | 140.0054 | |
| MBZ0233.04 | M6x28x1.0 Contact Tip, CuCrZr | 140.0245 | |
| MBZ0333.01 | M6x28x1.2 Contact Tip, CuCrZr | 140.0382 | |
| 5 | MBZ0532.01 | M8x30×0.8 Contact Tip, E-Cu | 140.0114 |
| MBZ0532.02 | M8x30×1.0 Contact Tip, E-Cu | 140.0313 | |
| MBZ0532.03 | M8x30×1.2 Contact Tip, E-Cu | 140.0442 | |
| MBZ0533.01 | M8x30×0.8 Contact Tip, CuCrZr | 140.0117 | |
| MBZ0533.02 | M8x30×1.0 Contact Tip, CuCrZr | 140.0316 | |
| MBZ0533.03 | M8x30×1.2 Contact Tip, CuCrZr | 140.0445 | |
| *6 | MBZ0536.01 | Contact Tip Holder M6x22 | 142.0007 |
| MBZ0536.02 | Contact Tip Holder M8x22 | 142.0082 | |
| *7 | MBZ0539.01 | Gas Diffusor DMC | 018.0116 |
| MBZ0539.02 | Gas Diffusor Ceramic | 018.0141 | |
| *8a | MBZ0543 .01 | Swan Neck | 018.0001 |
| 8b | MBZ0543 .02 | Flex Neck | |
| 9 | MBZ0144.01 | Plastic Nut | |
| 10 | MBZ0122.03 | Handle BWM-VI Black-Gray | |
| 11 | MBZ0195.02 | Switch | |
| 12 | MBZ0196.02 | Ball Joint Cable Support Spring | |
| 13 | MBZ0560.01 | Cable Assembly, 3m | |
| MBZ0560.02 | Cable Assembly, 5m | ||
| 14 | MBZ0197 | Cable Support Spring | |
| 15 | MBZ0171.02 | Cable Support Machine Side | |
| 16 | MBZ0170.02 | Adapter Nut | |
| 17 | MBZ0172 | Central Connector KZ-2 | 501.002 |
| 18 | MBZ0180.01.35 | Green Liner, For Wire Ø0.8-Ø1.0, 3.5m | |
| MBZ0180.01.55 | Green Liner, For Wire Ø0.8-Ø1.0, 5.5m | ||
| 19 | MBZ0173 | Nut M10×1 | 501.0082 |
BLACK WOLF is in no way affiliated with BINZEL. The parts advertised for sale are not genuine BINZEL parts, but are parts made for and by BLACK WOLF.
References to BINZEL machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine BINZEL parts in place of BLACK WOLF parts.
