BW 555D Liquid cooled MIG/MAG welding torch
Cooling method: Liquid Duty cycle : 550A 100% CO₂/500A 100% Mixed Gases Wire size: 0.8~1.6mm
0Cooling method: Liquid Duty cycle : 550A 100% CO₂/500A 100% Mixed Gases Wire size: 0.8~1.6mm
Product Description
Patent number: ZL201730356463.6
Compatible Torch and Parts For BINZEL

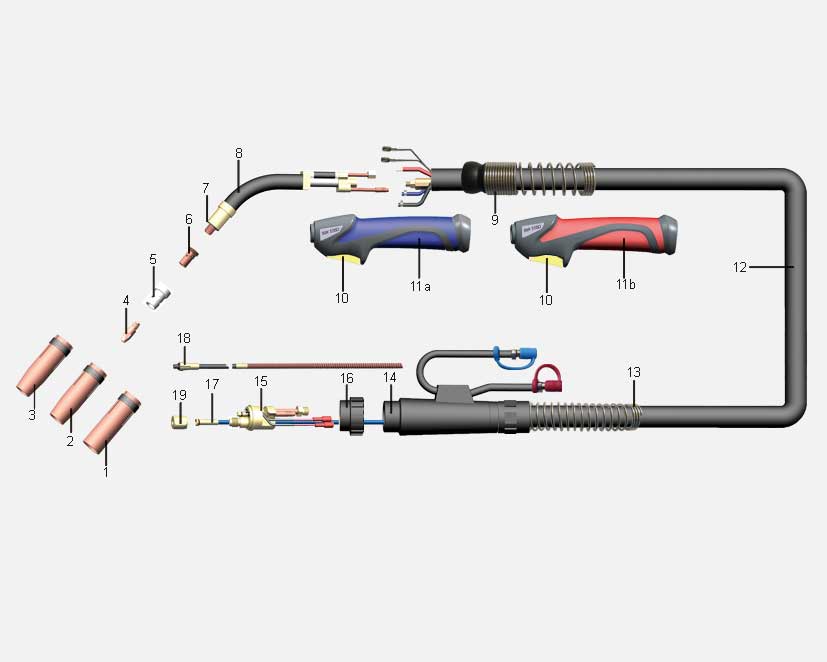

Product Specification
| No. | Order | Description | OEM p/n |
| MBZ0900.03 | BW 555D Complete Torch (BWM-III BLUE-GRAY) 3m | ||
| MBZ0901.05 | BW 555D Complete Torch (BWM-III BLUE-GRAY) 5m | ||
| MBZ0902.03 | BW 555D Complete Torch (BWM-III RED-GRAY) 3m | ||
| MBZ0903.05 | BW 555D Complete Torch (BWM-III RED-GRAY) 5m | ||
| 1 | MBZ0830.01 | Cylindrical Nozzle Ø19mm | 145.0051 |
| 2 | MBZ0830.02 | Conical Nozzle Ø16mm | 145.0085 |
| 3 | MBZ0830.03 | Tapered Nozzle Ø14mm | 145.0132 |
| 4 | MBZ0532.01 | M8x30x0.8 Contact Tip, E-Cu | 140.0114 |
| MBZ0532.02 | M8x30x1.0 Contact Tip, E-Cu | 140.0313 | |
| MBZ0532.03 | M8x30x1.2 Contact Tip, E-Cu | 140.0442 | |
| MBZ0732.02 | M8x30x1.6 Contact Tip, E-Cu | 140.0587 | |
| MBZ0533.01 | M8x30x0.8 Contact Tip, CuCrZr | 140.0117 | |
| MBZ0533.02 | M8x30x1.0 Contact Tip, CuCrZr | 140.0316 | |
| MBZ0533.03 | M8x30x1.2 Contact Tip, CuCrZr | 140.0445 | |
| MBZ0733.01 | M8x30x1.6 Contact Tip, CuCrZr | 140.0590 | |
| MBZ0834.02 | M8X30X0.8 Contact Tip, E-Cu For AI | 141.0003 | |
| MBZ0834.03 | M8X30X1.0 Contact Tip, E-Cu For AI | 141.0008 | |
| MBZ0834.04 | M8X30X1.2 Contact Tip, E-Cu For AI | 141.0015 | |
| MBZ0834.05 | M8X30X1.6 Contact Tip, E-Cu For AI | 141.0022 | |
| 5 | MBZ0839.01 | Gas Diffuser DMC | 030.0145 |
| MBZ0839.02 | Gas Diffuser Ceramic | 030.0190 | |
| 6 | MBZ0835.09 | Contact Tip Holder M8x27 CuCrZr | 142.0201.10 |
| 7 | MBZ0849 | Insulator | 030.0019 |
| 8 | MBZ0943 | Swan Neck | 766.0532.1 |
| 9 | MBZ0896 | Ball Joint Cable Support Spring | |
| 10 | MBZ0195.03 | Switch | |
| 11a | MBZ0922.02 | BWM-III Handle (BLUE-GRAY) | |
| 11b | MBZ0922.01 | BWM-III Handle (RED-GRAY) | |
| 12 | MBZ0960.01 | Cable Assembly, 3m | |
| MBZ0960.02 | Cable Assembly, 5m | ||
| 13 | MBZ0897 | Back Cable Support Spring | |
| 14 | MBZ0871 | Cable Support Machine Side | 501.2379 |
| 15 | MBZ0872.02 | Central Connector WZ-2 | 501.0015 |
| 16 | MBZ0170 | Adapter Nut | 500.0213 |
| 17 | MBZ0680.02F | Blue Liner, For Wire Ø0.8-1.6, 3.5m | |
| MBZ0680.02G | Blue Liner, For Wire Ø0.8-1.6, 5.5m | ||
| 18 | MBZ0885.03F | Liner, For Alu Wire Ø1.6, 3.5m | |
| MBZ0885.03G | Liner, For Alu Wire Ø1.6, 5.5m | ||
| 19 | MBZ0173 | Nut M10x1 | 501.0082 |
Excel In Impulse Welding Of Alu, Carbon Steel And Stainless Steel.
References to BINZEL machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine BINZEL parts in place of BLACK WOLF parts.
BLACK WOLF is in no way affiliated with BINZEL. The parts advertised for sale are not genuine BINZEL parts, but are parts made for and by BLACK WOLF.
