BW PT-40/BW PT-40P Without High Frequency Air Cooled Plasma Cutting Torches
Standard Length: 4m
Air Pressure: 4.5-5.0bar
Duty Cycle: 60% 40A
0Standard Length: 4m
Air Pressure: 4.5-5.0bar
Duty Cycle: 60% 40A
Product Description
Compatible torch and parts for TECMO
Product Specification

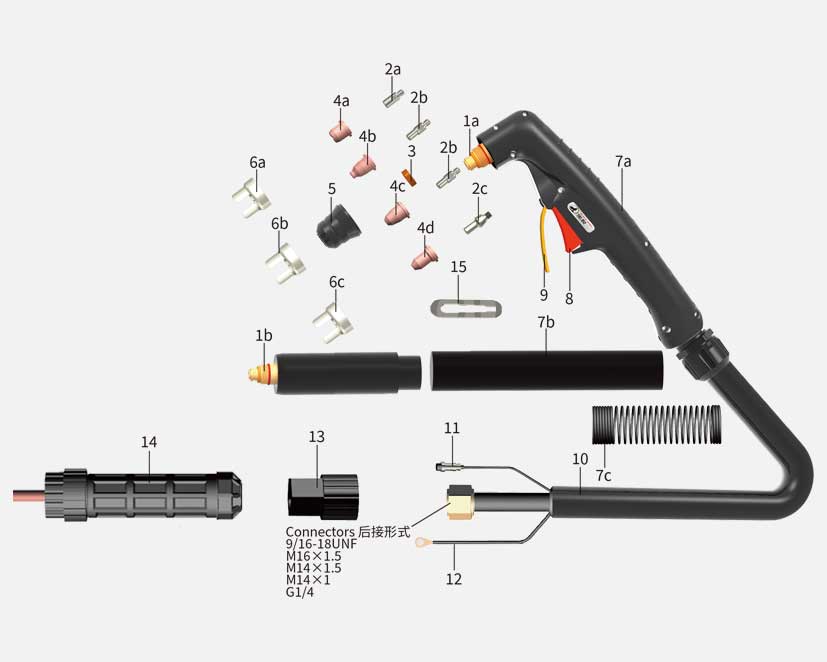

| No. | Order | Description | OEM |
| PTC0200.04 | BW PT-40 Hand Torch 4m | ||
| PTC0201.04 | BW PT-40P Auto Torch 4m | ||
| 1a | PTC0210 | BW PT-40 Hand Torch Head | |
| 1b | PTC0310 | BW PT-60P Auto Torch Head | |
| 2a | PTF0431.02 | BW S45 Short Electrode | PR0105 |
| *2b | PTF0431.01 | BW S45 Electrode | PR0110 |
| 2c | PTF0331.01 | BW PT Electrode | |
| *3 | PTF0436 | BW S45 Swirl Ring | PE0106 |
| 4a | PTF0432.05 | S45 Short Nozzle 1.0mm 50A | PD0102-10 |
| 4b | PTF0432.07 | S45 Nozzle 1.5mm | |
| 4c | PTF0432.01 | Nozzle 0.6mm 20A | PD0116-06 |
| PTF0432.02 | Nozzle 0.8mm 30A | PD0116-08 | |
| * | PTF0432.03 | Nozzle 0.8mm 40A | PD0116-09 |
| 4d | PTC0232.01 | Pinted Nozzle 0.8mm 25A | |
| PTC0232.02 | Pinted Nozzle 0.8mm 40A | ||
| *5 | PTF0434.02 | Shield (6 Hole) | PC0116 |
| PTF0434.01 | Shield (4 Hole) | ||
| 6a | PTF0439.03 | BW S45 Short Double Pointed Spacer | |
| *6b | PTF0439.01 | BW S45 Double Pointed Spacer | |
| 6c | PTC0239 | BW PT Double Pointed Spacer | |
| 7a | PTC0120 | Manual Handle | |
| 7b | PTC0320 | Handle, For Auto Torch | |
| 7c | PTC0320.01 | Handle Spring | |
| 8 | MBZ0195 | Switch | |
| 9 | PTC0220.01 | Protection Block For Switch | |
| 10 | PTC0251.01 | Cable Assembly | |
| 11 | PPA0171 | 2-Pins Plug | |
| 12 | PPA0169 | Pilot Arc Wire | |
| 13 | PPA0170 | Protection Nut | |
| 14 | PTF0272 | Central Adaptor | |
| 15 | PTC013A | Spanner |
* Standard configuration
NOTE: Please specify the connector when ordering.
BLACK WOLF is in no way affiliated with TECMO. The parts advertised for sale are not genuine TECMO parts, but are parts made for and by BLACK WOLF.
References to TECMO machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine TECMO parts in place of BLACK WOLF parts.
Performance parameter
Standard Length: 5m
Air Pressure: 3.0-5.0bar
Duty Cycle 60%: 40A
