BW PT-80 Without High Frequency Air Cooled Plasma Cutting Torches
Standard Length:5m
Air Pressure:4.0-5.0bar
Duty Cycle 60%:80A
0Standard Length:5m
Air Pressure:4.0-5.0bar
Duty Cycle 60%:80A
Product Description
Compatible torch and parts for TECMO
Product Specification

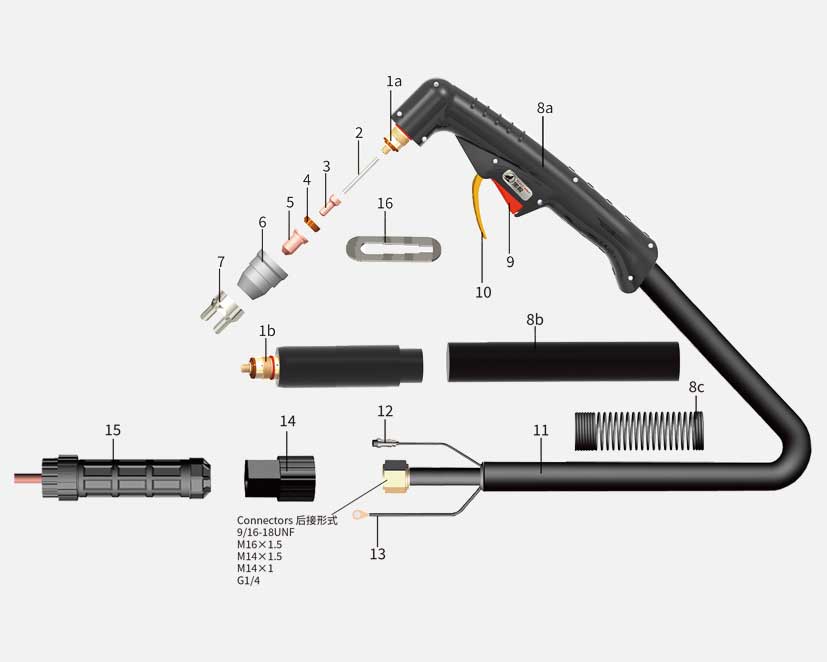

| No. | Order | Description | OEM |
| PTC0400.05 | BW PT-80 Manual Torch (Gas and Power Separated) 5m | ||
| PTC0401.05 | BW PT-80 Manual Torch (Gas and Power Integrated) 5m | ||
| 1 | PTC0410 | BW PT-80 Manual Torch Head | |
| 2 | PTC0413 | O-Ring | |
| 3 | PTC0430 | Gas Tube | 9800.42 |
| 4 | PTC0431 | Electrode (Back Striking) | 52558 |
| 5 | PTC0436 | Swirl Ring | 60027 |
| 6 | PTC0432.01 | Nozzle (Back Striking) 1.0mm 40-50A | 51311.10 |
| PTC0432.02 | Nozzle (Back Striking) 1.1mm 50-60A | 51311.11 | |
| PTC0432.03 | Nozzle (Back Striking) 1.2mm 60-70A | 51311.12 | |
| PTC0432.04 | Nozzle (Back Striking) 1.3mm 70-80A | 51311.13 | |
| 7 | PTC0424.01 | Shield | 60510 |
| 8 | PTC0439 | Double Pointed Spacer | |
| 9 | PTC0420 | Manual Handle | |
| 10 | MBZ0195 | Switch | |
| 11 | PTC0220.01 | Protection Block For Switch | |
| 12 | PTC0451.01 | Cable Assembly-Gas and Power Separated | |
| PTC0451.02 | Cable Assembly-Gas and Power Integrated | ||
| 13 | PTC013A | Spanner | |
| 14 | PTF0272 | Central Adaptor |
NOTE: Please specify the connector when ordering.
BLACK WOLF is in no way affiliated with TECMO. The parts advertised for sale are not genuine TECMO parts, but are parts made for and by BLACK WOLF.
References to TECMO machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine TECMO parts in place of BLACK WOLF parts.
Performance parameter
Standard Length: 5m
Air Pressure: 4.0-5.0bar
Duty Cycle 60%: 80A
