BW BND Q300 Air cooled MIG/MAG welding torch
Rating: 320A CO2 270A Mixed Gases
Duty Cycle: 60%
Wire Size: 0.8-1.2mm
0Rating: 320A CO2 270A Mixed Gases
Duty Cycle: 60%
Wire Size: 0.8-1.2mm
Product Description
Compatible Torch and Parts For BND
Product Specification

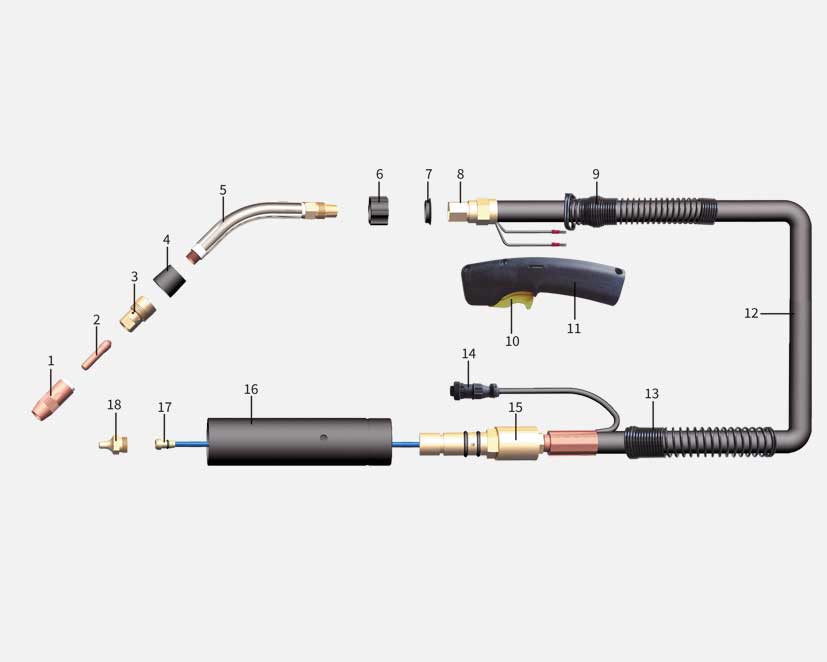

No. | Order | Description | OEM p/n |
MBN0100.03 | BW BND Q300 Complete Torch 3m | ||
MBN0101.05 | BW BND Q300 Complete Torch 5m | ||
1 | MBN0130 | Nozzle Ø16mm | |
2 | MBN0132.01 | Contact Tip 0.8 | T-030 |
MBN0132.02 | Contact Tip 0.9 | T-035 | |
| * | MBN0132.03 | Contact Tip 1.0 | T-039 |
MBN0132.04 | Contact Tip 1.2 | T-045 | |
3 | MBN0135 | Gas Diffuser | DS-1 |
4 | MBN0147 | Insulator Cap | 4523R |
5 | MBN0143 | Swan Neck | QT3-45 |
6 | MBN0148 | Protection Nut | 1840057 |
7 | MBN0149 | Insulator | 1840031 |
8 | MBN0175.01 | Connector Cone | 4213B |
9 | MBN0196 | Handle Spring | 2520042 |
10 | MBN0195.07 | Switch | 2690001 |
11 | MBN012C | Handle | 1880155 |
12 | MBN0160.01 | Cable Assembly, 3m | |
MBN0160.02 | Cable Assembly, 5m | ||
13 | MBN0197 | Back Cable Support Spring | |
14 | MBN0174 | Control Lead Plug | W11127-002 |
15 | MBN0175.01 | Rear Connector Body | |
16 | MBN0171 | Cable Support Machine Side | |
17 | MBN0182.01F | Blue Liner, For Wire Ø0.9-1.1, 3.5m | |
MBN0182.01G | Blue Liner, For Wire Ø0.9-1.1, 5.5m | ||
18 | MBN0176 | Guide Cap |
* Standard configuration
BLACK WOLF is in no way affiliated with BERNARD. The parts advertised for sale are not genuine BERNARD parts, but are parts made for and by BLACK WOLF.
References to BERNARD machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine BERNARD parts in place of BLACK WOLF parts.
Performance parameter
Rating: 320A CO₂/270A Mixed Gases
Duty: 60%
Wire size: 0.8~1.2 mm
