BW ROB 501D Liquid-Cooled Robot Torch-Over-Arm
Rating: 500A CO2 450A Mixed Gases
Duty Cycle: 100%
Wire Size: 1.0-1.6mm
0Rating: 500A CO2 450A Mixed Gases
Duty Cycle: 100%
Wire Size: 1.0-1.6mm
Product Description
Product Specification

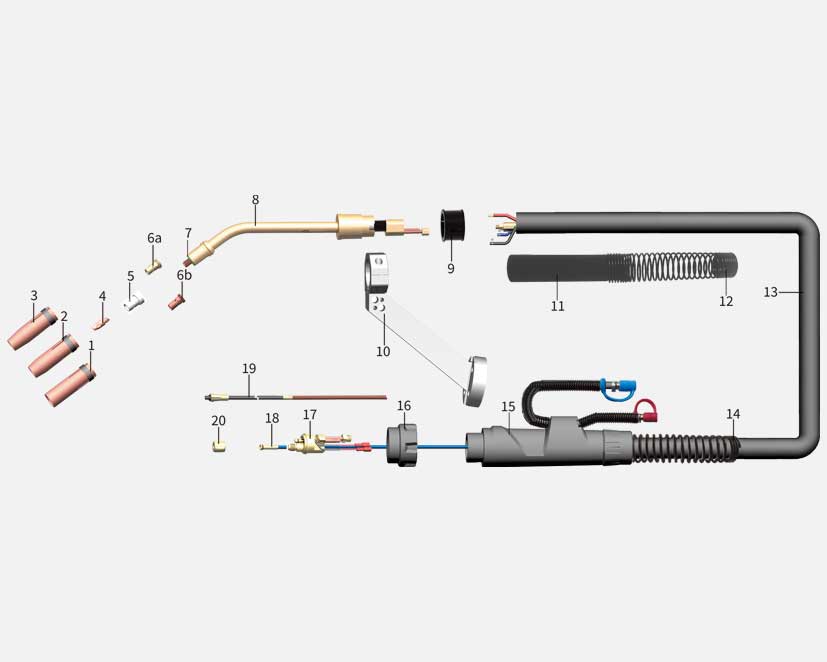

| No. | Order | Description | OEM p/n |
| RCZ0104.03 | BW ROB 501D Complete Torch | ||
| 1 | MBZ0830.01 | Cylindrical Nozzle Ø19mm | 145.0051 |
| 2 | MBZ0830.02 | Conical Nozzle Ø16mm | 145.0085 |
| 3 | MBZ0830.03 | Tapered Nozzle Ø14mm | 145.0132 |
| 4 | RDZ0133.01 | M8×30×0.8 Contact Tip | |
| RDZ0133.02 | M8×30×0.9 Contact Tip | ||
| RDZ0133.03 | M8×30×1.0 Contact Tip | ||
| RDZ0133.04 | M8×30×1.2 Contact Tip | ||
| RDZ0133.05 | M8×30×1.4 Contact Tip | ||
| RDZ0133.06 | M8×30×1.6 Contact Tip | ||
| RDZ0133.07 | M8×30×0.8 Contact Tip , Al | ||
| RDZ0133.08 | M8×30×0.9 Contact Tip , Al | ||
| RDZ0133.09 | M8×30×1.0 Contact Tip , Al | ||
| RDZ0133.10 | M8×30×1.2 Contact Tip , Al | ||
| RDZ0133.11 | M8×30×1.4 Contact Tip , Al | ||
| RDZ0133.12 | M8×30×1.6 Contact Tip , Al | ||
| 5 | MBZ0839.01 | Gas Diffuser DMC | 030.0145 |
| MBZ0839.02 | Gas Diffuser Ceramic | 030.0190 | |
| 6a | MBZ0835.05 | Contact Tip Holder M8×25 Brass | 142.0022 |
| MBZ0835.07 | Contact Tip Holder M8×29 Brass | 142.0027 | |
| 6b | MBZ0835.06 | Contact Tip Holder M8×25 CuCrZr | |
| MBZ0835.08 | Contact Tip Holder M8×29 CuCrZr | ||
| 7 | MBZ0849 | Insulator | |
| 8 | RCZ0143 | BW ROB 501D Swan Neck | |
| 9 | RCZ0143.01 | Swan Neck Clamp liner sleeve | |
| 10 | RCZ0143.02 | Swan Neck Clamp | |
| 11 | MBZ0822.01 | Handle | |
| 12 | MBZ0896.02 | Cable Support Spring | |
| 13 | MBZ0860.01 | Cable Assembly | |
| 14 | MBZ0897 | Back Cable Support Spring | |
| 15 | MBZ0871.02 | Cable Support Machine Side | |
| 16 | MBZ0170.02 | Adapter Nut | |
| 17 | MBZ0872 | Central Connector WZ-2 | |
| 18 | MBZ0680.02.35 | Blue Liner, For Wire Ø1.0-1.2 | |
| 19 | MBZ0880.04.35 | Liner, For Alu Wire | |
| 20 | MBZ0173 | Nut M10×1 |
