The Golden Globe BW ROB 501W liquid-cooled welding torch is strictly compatible with the Binzel Abirob W500 system. Its efficient liquid-cooled heat dissipation is suitable for high-load welding. It is specially designed for the automated production lines of robot welding guns, and is applicable to automotive manufacturing and aerospace industries, ensuring stable welding and a long service life cycle.
Product Description
Product Specification
| Complete Torches | ||
| Parts | Order | Description |
| RBW1100.01 | BW ROB 501W Complete Torch | |

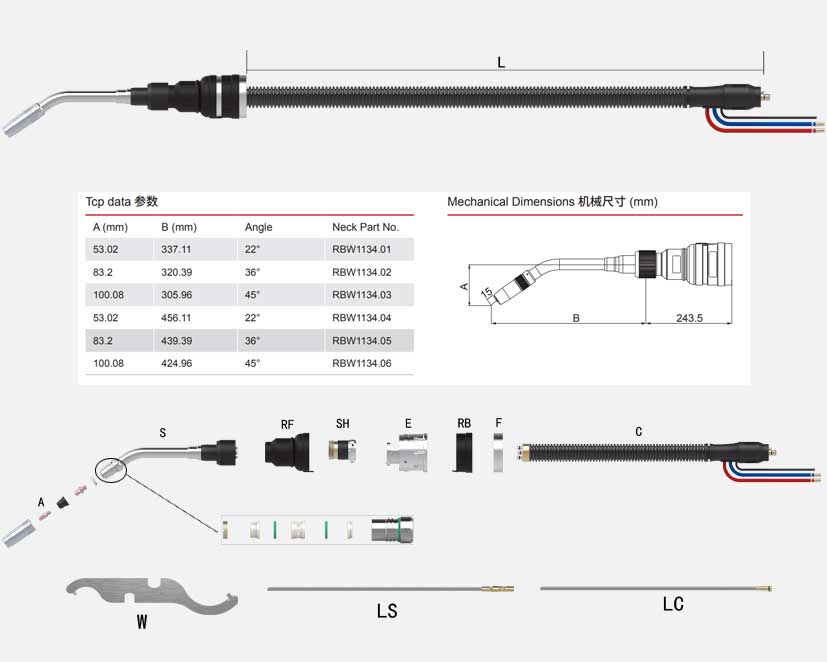

| Parts | ||
| Parts | Order | Description |
| RF | 501W Dust cover | |
| SH | 501W Swan neck holder | |
| E | Safety-off Mechanism | |
| RB | Mechanism cover | |
| C | 501W Cable assembly | |
| Swan neck | ||
| Parts | Order | Description |
| S | RBW1134.01 | Swan neck, 22° |
| RBW1134.02 | Swan neck, 36° | |
| RBW1134.03 | Swan neck, 45° | |
| RBW1134.04 | Swan neck long, 22° | |
| RBW1134.05 | Swan neck long, 36° | |
| RBW1134.06 | Swan neck long, 45° | |
| Type A(M8) | ||
| Parts | Order | Description |
| A-1 | RBW1130.01 | Nozzle Ø14 |
| RBW1130.02 | Nozzle Ø16 | |
| RBW1130.03 | Nozzle Ø18 | |
| A-2 | RDZ0133.01 | M8×30×0.8 Contact Tip |
| RDZ0133.02 | M8×30×0.9 Contact Tip | |
| RDZ0133.03 | M8×30×1.0 Contact Tip | |
| RDZ0133.04 | M8×30×1.2 Contact Tip | |
| RDZ0133.05 | M8×30×1.4 Contact Tip | |
| RDZ0133.06 | M8×30×1.6 Contact Tip | |
| A-3 | RBW1139 | Diffuser |
| A-4 | RBW1135 | Contact Tip Holder |
| A-5 | RBW1140 | Insulator |
| Repair kit | ||
| Parts | Order | Description |
| W | RBW1148 | Wrench |
| R-1 | RBW1131 | Locking ring |
| R-2 | RBW1139 | Sealing kit |
| R-3 | RBW1129 | Nozzle holder |
| Liner | ||
| Parts | Order | Description |
| LS | RBW1182.01 | Swan neck liner, Steel |
| RBW1182.02 | Swan neck liner, Al | |
| LC | RBW1182.03 | Cable liner, Steel |
| RBW1182.04 | Cable liner, Al | |
| Flange | ||
| Order | Robot | Description |
| RBW1128.01 | ABB | IRB1200 |
| RBW1128.02 | ABB | IRB1410, IRB1600, IRB2400L |
| RBW1128.03 | ABB | IRB1520iD |
| RBW1128.04 | ABB | IRB2400-10-16, IRB2600 |
| RBW1128.05 | Yaskawa | MA1440 (AR1440), MA2010 (AR2010), MA3120, MH12 |
| RBW1128.06 | Yaskawa | MH6, SSF200, HP20D |
| RBW1128.07 | Efort | ER6 |
| RBW1128.08 | Chaifu | SF6-1440, SF6-C2080 |
| RBW1128.09 | Fanuc | R-0iB, 200iD |
| RBW1128.10 | Fanuc | 100ic, M10iA |
| RBW1128.11 | Fanuc | M10iD |
| RBW1128.12 | Balkal | BR-1510A, JHY-2010A, BR-1610A |
| RBW1128.13 | Kuka | KR5 R1400, KR10 R1420, KR8 R1620 |
| RBW1128.14 | Kuka | KR5 arc |
| RBW1128.15 | Hyundai | HA006B, HA006L, HH010L, HH020 |
| RBW1128.16 | Zhenkang | ZK1400-06 |
| RBW1128.17 | Crobotp | CRP-RH14-10-W, CRP-RH18-20-W, CRP-RH20-06-W |
| RBW1128.18 | Crobotp | CRP-RH14-10, CRP-RH18-20 |
| RBW1128.19 | JAKA | Zu etc |
Performance parameter
Cooling method: Water
Duty cycle: 500A 100% CO₂/500A 100% Mixed gases
Wire size: 0.8-1.6
