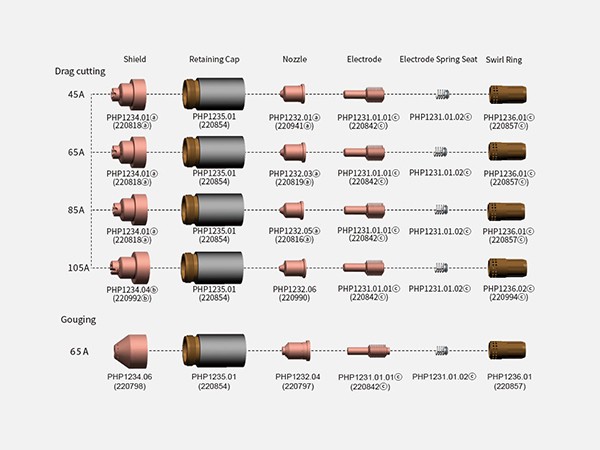

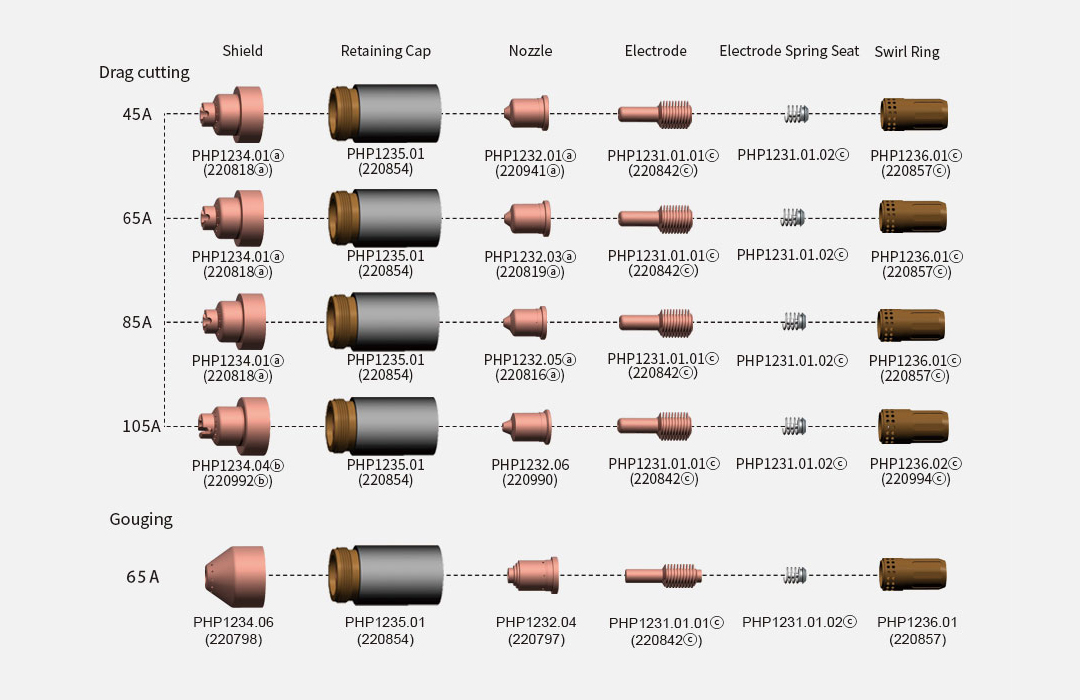

Product Description
Product Specification
Electric current | Shield | Retaining Cap | Nozzle | Electrode | Electrode Spring Seat | Swirl Ring | |
45A | Order | PHP1234.01 ⓐ | PHP1235.01 | PHP1232.01 ⓐ | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.01 ⓒ |
OEM p/n | 220818 ⓐ | 220854 | 220941 ⓐ | 220842 ⓒ | 220857 ⓒ | ||
65A | Order | PHP1234.01 ⓐ | PHP1235.01 | PHP1232.03 ⓐ | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.01 ⓒ |
OEM p/n | 220818 ⓐ | 220854 | 220819 ⓐ | 220842 ⓒ | 220857 ⓒ | ||
85A | Order | PHP1234.01 ⓐ | PHP1235.01 | PHP1232.05 ⓐ | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.01 ⓒ |
OEM p/n | 220818 ⓐ | 220854 | 220816 ⓐ | 220842 ⓒ | 220857 ⓒ | ||
105A | Order | PHP1234.04 ⓑ | PHP1235.01 | PHP1232.06 | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.02 ⓒ |
OEM p/n | 220992 ⓑ | 220854 | 220990 | 220842 ⓒ | 220994 ⓒ | ||
65A | Order | PHP1234.06 | PHP1235.01 | PHP1232.04 | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.01 ⓒ |
OEM p/n | 220798 | 220854 | 220797 | 220842 ⓒ | 220857 ⓒ |

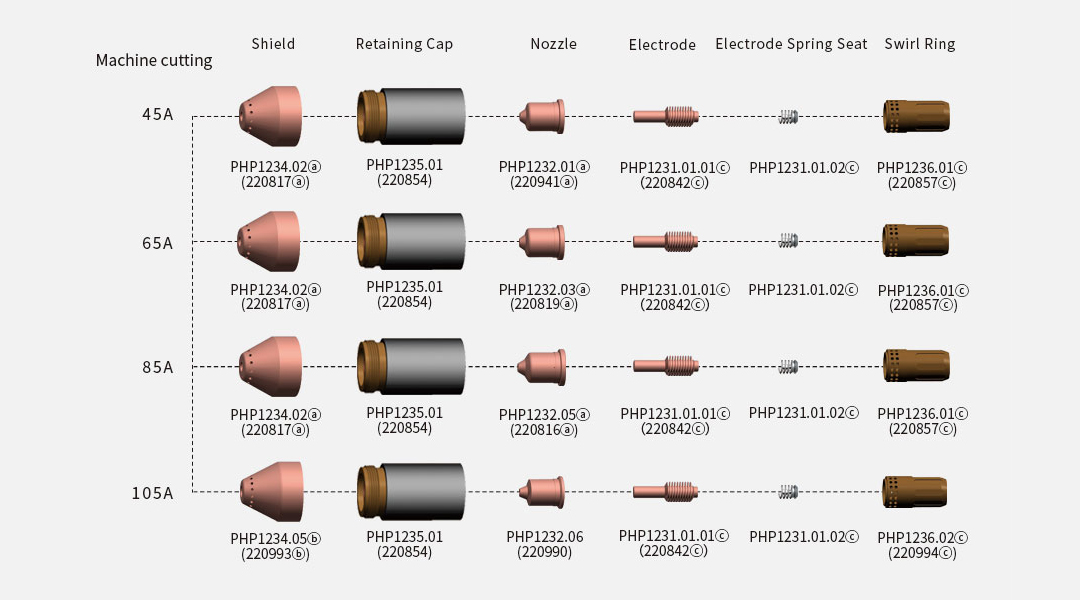

Product Description
Product Specification
Electric current | Shield | Retaining Cap | Nozzle | Electrode | Electrode Spring Seat | Swirl Ring | |
45A | Order | PHP1234.02 ⓐ | PHP1235.01 | PHP1232.01 ⓐ | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.01 ⓒ |
OEM p/n | 220817 ⓐ | 220854 | 220941 ⓐ | 220842 ⓒ | 220857 ⓒ | ||
65A | Order | PHP1234.02 ⓐ | PHP1235.01 | PHP1232.03 ⓐ | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.01 ⓒ |
OEM p/n | 220817 ⓐ | 220854 | 220819 ⓐ | 220842 ⓒ | 220857 ⓒ | ||
85A | Order | PHP1234.02 ⓐ | PHP1235.01 | PHP1232.05 ⓐ | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.01 ⓒ |
OEM p/n | 220817 ⓐ | 220854 | 220816 ⓐ | 220842 ⓒ | 220857 ⓒ | ||
105A | Order | PHP1234.05 ⓑ | PHP1235.01 | PHP1232.06 | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.02 ⓒ |
OEM p/n | 220993 ⓑ | 220854 | 220990 | 220842 ⓒ | 220994 ⓒ |

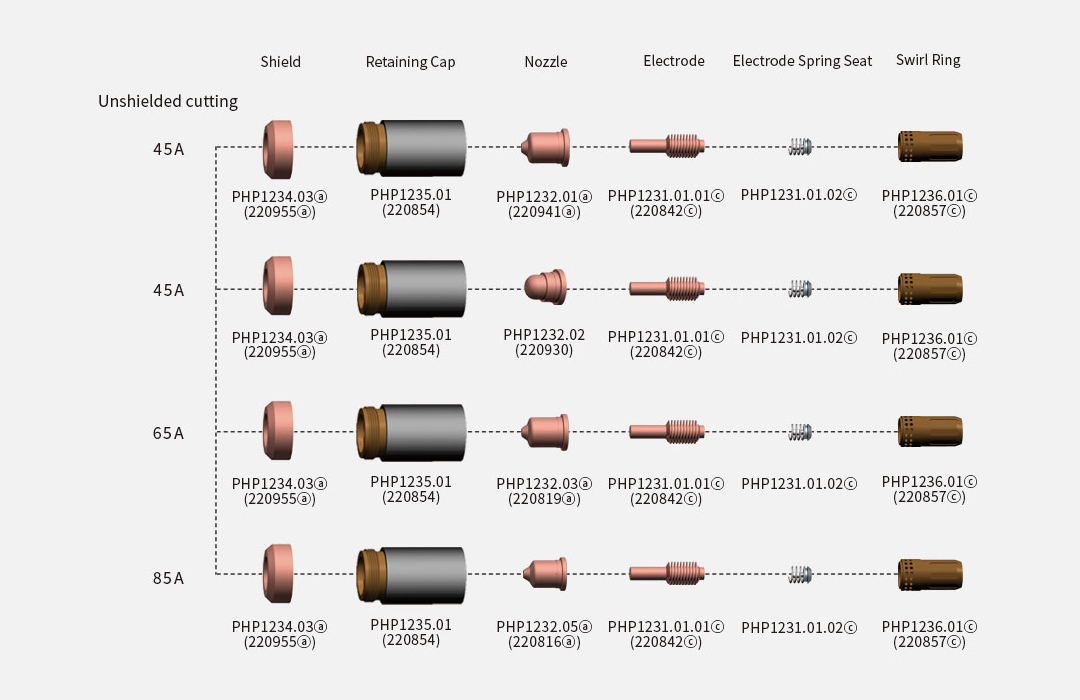

Product Description
Product Specification
Electric current | Shield | Retaining Cap | Nozzle | Electrode | Electrode Spring Seat | Swirl Ring | |
45A | Order | PHP1234.03 ⓐ | PHP1235.01 | PHP1232.01 ⓐ | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.01 ⓒ |
OEM p/n | 220955 ⓐ | 220854 | 220941 ⓐ | 220842 ⓒ | 220857 ⓒ | ||
45A | Order | PHP1234.03 ⓐ | PHP1235.01 | PHP1232.02 | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.01 ⓒ |
OEM p/n | 220955 ⓐ | 220854 | 220930 | 220842 ⓒ | 220857 ⓒ | ||
65A | Order | PHP1234.03 ⓐ | PHP1235.01 | PHP1232.03 ⓐ | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.01 ⓒ |
OEM p/n | 220955 ⓐ | 220854 | 220819 ⓐ | 220842 ⓒ | 220857 ⓒ | ||
85A | Order | PHP1234.03 ⓐ | PHP1235.01 | PHP1232.05 ⓐ | PHP1231.01.01 ⓒ | PHP1231.01.02 ⓒ | PHP1236.02 ⓒ |
OEM p/n | 220955 ⓐ | 220854 | 220816 ⓐ | 220842 ⓒ | 220994 ⓒ |
ⓐ Must be used only as a set of shield and nozzle, this complete set is interchangeable and compatible with original parts.
ⓑ Must be used only as a set of shield, retaining cap and nozzle, this complete set is interchangeable and compatible with original parts.
ⓒ Must be used only as a set of electrode and swirl ring, this complete set is interchangeable and compatible with original parts.
BLACK WOLF is in no way affiliated with HYPERTHERM. The parts advertised for sale are not genuine HYPERTHERM parts, but are parts made for and by BLACK WOLF.
References to HYPERTHERM machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine HYPERTHERM parts in place of BLACK WOLF parts.
