BW 350A Air cooled MIG/MAG welding torch
Rating:350A CO₂/300A Mixed Gases
Duty cycle:60%
Wire size:0.9~1.2 mm
//www.blackwolfwelding.com/uploadfiles/128.1.164.122/webid2112/source/202303/168015404052.jpg
Product Detail

Product Description


Patent number: ZL201530291711.4

Compatible Torch and Parts For Panasonic

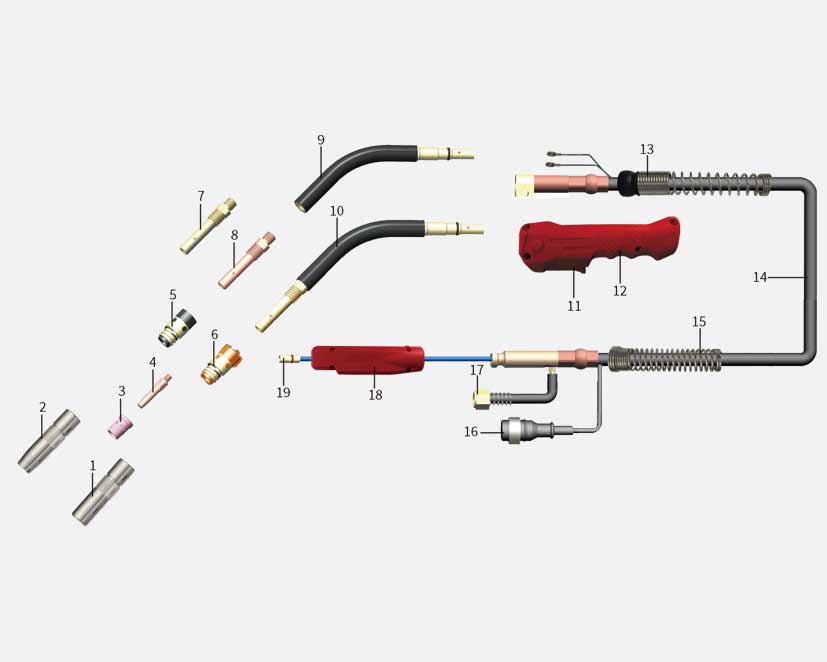

Product structure of the BW 350A Air cooled MIG/MAG welding torch


Product Specification


No.OrderDescriptionOEM p/n

MPA0200.03 BW 350A Complete Torch (BWM-V RED-BLACK) 3m

MPA0201.05 BW 350A Complete Torch (BWM-V RED-BLACK) 5m

MPA0202.03 BW 350A Complete Torch (BWM-V BLUE-GRAY) 3m

MPA0203.05 BW 350A Complete Torch (BWM-V BLUE-GRAY) 5m
1MPA0230.01 Cylindrical Nozzle Ø15mm TGN01610
2MPA0230.02Conical Nozzle Ø12mm TGN00044
3MPA0239 Gas Diffuser TGR01001
4MPA0132.02M6x45x0.9 Contact Tip, E-Cu

MPA0132.03 M6x45x1.0 Contact Tip, E-Cu

MPA0132.04 M6x45x1.2 Contact Tip, E-Cu

MPA0133.02 M6x45x0.9 Contact Tip, CuCrZr TET00930

MPA0133.03 M6x45x1.0 Contact Tip, CuCrZr TET01054

MPA0133.04 M6x45x1.2 Contact Tip, CuCrZr TET01266
5MPA0240.01 Black Insulator TFZ00002
6MPA0240.02 Yellow Insulator
7MPA0236 Brass Contact Tip Holder
8MPA0235 Copper Contact Tip Holder
9MPA0243.01Swan Neck Separable TSM06357
10MPA0243.02 Swan Neck TCU35022
11MPA0195.06 Switch
12a MPA0227.01 Handle BWM-V (RED-BLACK)
12b MPA0227.02 Handle BWM-V (BLUE-GRAY)
13MPA0296 Front Cable Support Spring
14MPA0260.01Industrial Cable Assembly 18mm2, 3m

MPA0260.02Industrial Cable Assembly 18mm2, 5m

MPA0260.03Practical Cable Assembly 16mm2, 3m

MPA0260.04Practical Cable Assembly 16mm2, 5m

MPA0260.05Economical Cable Assembly 12mm2, 3m

MPA0260.06Economical Cable Assembly 12mm2, 5m
15MPA0297Back Cable Support Spring
16MPA0174 Control Lead Plug TWU18101
17MPA0181 Nut
18MPA0171Cable Support Machine Side
19MPA0281.02F Blue Liner, For Wire Ø1.0-1.2, 3.5m

MPA0281.02G Blue Liner, For Wire Ø1.0-1.2, 5.5m

References to PANASONIC machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine PANASONIC parts in place of BLACK WOLF parts.

BLACK WOLF is in no way affiliated with PANASONIC. The parts advertised for sale are not genuine PANASONIC parts, but are parts made for and by BLACK WOLF.



Handles(Color and style can be customized)


Air cooled MIG/MAG welding torch Handles


Air cooled MIG/MAG welding torch Handles


Air cooled MIG/MAG welding torch Handles
