BW LBT 150 Spool Air Cooled MIG/MAG Welding Torches
Cooling: Air Cooled
Duty cycle 60%: 150Amp CO2 130Amp MIX
Wire Size: 0.8-1.0mm
0Cooling: Air Cooled
Duty cycle 60%: 150Amp CO2 130Amp MIX
Wire Size: 0.8-1.0mm
Product Description
Product Specification

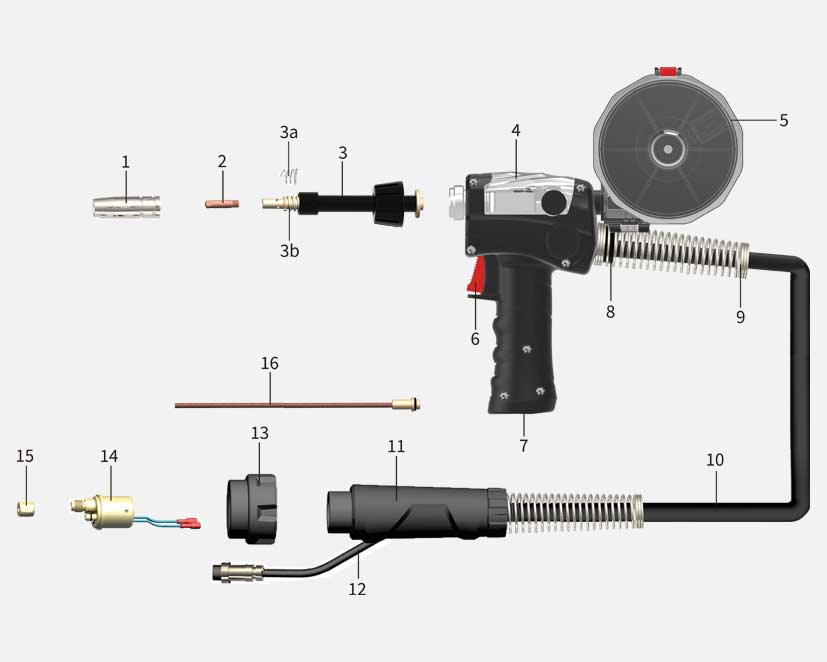

| No. | Order | Description | OEM p/n |
| MLS0200.03 | BW LBT 150 Spool Torch 3m | ||
| * | MLS0200.04 | BW LBT 150 Spool Torch 4m | |
| MLS0200.06 | BW LBT 150 Spool Torch 6m | ||
| MLS0200.08 | BW LBT 150 Spool Torch 8m | ||
| 1 | MBZ0130.02 | BW 15AK Nozzles Ø12mm | 145.0075 |
| 2 | MBZ0132.02 | Contact Tip M6×25×0.8mm E-CU | 140.0059 |
| 3 | MLS0243 | BW LBT 150 Swan Neck | MF0136 |
| 3a | MBZ0137 | BW 15AK Nozzle Spring | 002.0058 |
| 3b | MBZ0138 | BW 15AK Contact Tip/Holder | 002.0078 |
| 4 | MLS0122.01 | Cap | |
| 5 | MLS0122.02 | Wire Drawing Gun Reel Assembly | |
| 6 | MLS0122.03 | Switch | |
| 7 | MLS0122.04 | Grip Handle | |
| 8 | MLS0196 | Joint for grip handle | |
| 9 | MBZ0871 | Spring Cable Support | |
| 10 | MLS0260 | Cable Assembly | |
| 11 | MBZ0171 | Connectors | |
| 12 | MLS0161 | Control Wire | |
| 13 | MBZ0172 | Adapter Nut | |
| 14 | MBZ0171 | Central Adapter Body | |
| 15 | MBZ0173 | Nut M10×1 | |
| 16 | MLS0180 | Line 4.0×2.0×200mm |
NOTE: Please specify the connector when ordering.
* ：With "*" is the standard configuration
