BW LBT 250 Spool Air Cooled MIG/MAG Welding Torches
Cooling: Air Cooled
Duty cycle 60%: 200Amp CO2 180Amp MIX
Wire Size: Ø0.8-1.2mm
0Cooling: Air Cooled
Duty cycle 60%: 200Amp CO2 180Amp MIX
Wire Size: Ø0.8-1.2mm
Product Description
Product Specification

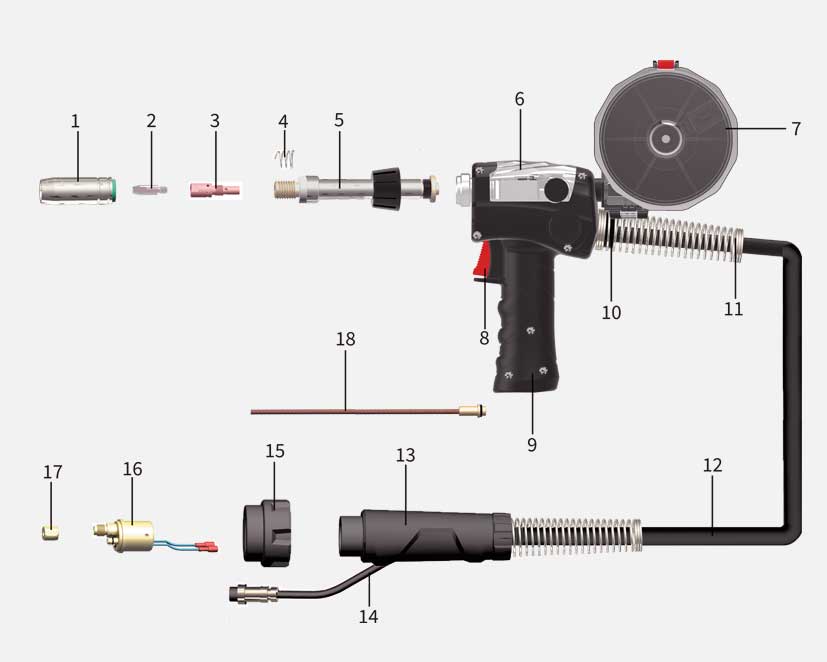

| No. | Order | Description | OEM p/n |
| MLS0300.03 | BW LBT 250 Spool Torch 3m | ||
| * | MLS0300.04 | BW LBT 250 Spool Torch 4m | |
| MLS0300.06 | BW LBT 250 Spool Torch 6m | ||
| MLS0300.08 | BW LBT 250 Spool Torch 8m | ||
| 1 | MBZ0430.02 | BW 25AK Gas Nozzle Ø15mm | 145.0076 |
| 2 | MBZ0232.04 | Contact Tip M6×28×1.0mm E-CU | 140.0242 |
| 3 | MBZ0435 | BW 25AK Contact Tip/Holder | 142.0001 |
| 4 | MBZ0437 | BW 25AK Nozzle Spring | 003.0013 |
| 5 | MLS0343 | BW LBT 250 Swan Neck | |
| 6 | MLS0122.01 | Cap | |
| 7 | MLS0122.02 | Wire Drawing Gun Reel Assembly | |
| 8 | MLS0122.03 | Switch | |
| 9 | MLS0122.04 | Grip Handle | |
| 10 | MLS0196 | Joint for grip handle | |
| 11 | MBZ0871 | Spring Cable Support | |
| 12 | MLS0160 | Cable Assembly | |
| 13 | MBZ0171 | Connectors | |
| 14 | MLS0161 | Control Wire | |
| 15 | MBZ0172 | Adapter Nut | |
| 16 | MBZ0171 | Central Adapter Body | |
| 17 | MBZ0173 | Nut M10×1 | |
| 18 | MLS0180 | Line 4.0×2.0 |
NOTE: Please specify the connector when ordering.
* ：With "*" is the standard configuration
