BW MAXI 4000 Water cooled MIG/MAG welding torch
Rating: 400A CO₂ /350A Mixed Gases Duty cycle: 100% Wire size: 1.0~2.4 mm
Product Detail

Product Description


Compatible Torch and Parts For Trafimet

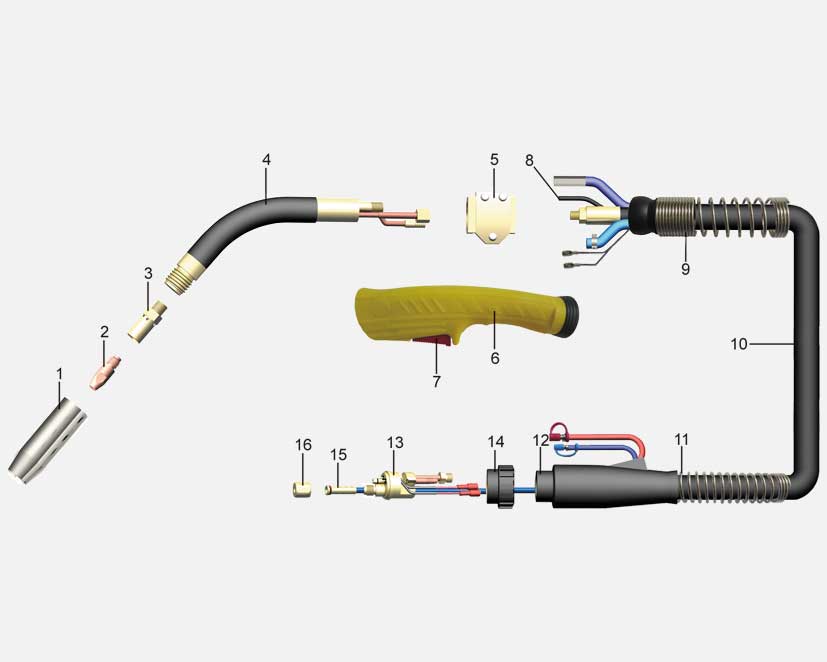

Product structure of the Water cooled MIG welding torch

Product Specification


No.OrderDescriptionOEM p/n
MTF0100.03 BW MAXI 4000 Complete Torch 3m
MTF0101.05 BW MAXI 4000 Complete Torch 5m
1MTF0130 Nozzle Ø18mm MC12
2MBZ0532.02 M8×30x1.0 Contact Tip, E-Cu MD5-10
MBZ0532.03 M8×30x1.2 Contact Tip, E-Cu MD5-12
MTF0132.01 M8×30x1.4 Contact Tip, E-Cu MD5-14
MBZ0732.01 M8×30x1.6 Contact Tip, E-Cu MD5-16
MBZ0533.02 M8×30x1.0 Contact Tip, CuCrZr MD5-80
MBZ0533.03 M8×30x1.2 Contact Tip, CuCrZr MD5-82
MTF0133.01 M8×30x1.4 Contact Tip, CuCrZr MD5-84
MBZ0733.01 M8×30x1.6 Contact Tip, CuCrZr MD5-86
3MTF0136 Contact Tip Holer ME9
4MTF0143 Swan Neck MG16
5MTF0143 Swan Neck Holder MT117
6MTF012B Handle MT104
7MBZ0295.04 Switch
8MTF0178 Switch Connector Collet
9MTF0196 Front Cable Support Spring EA320
10MTF0160.01 Cable Assembly, 3m
MTF0160.02 Cable Assembly, 5m
11MTF0197 Back Cable Support Spring
12MTF0171 Cable Support Machine Side
13MBZ0872.02 Central Connector WZ-2 501.0015
14MBZ0170Adapter Nut
15MBZ0680.02F Blue Liner, For Wire Ø1.0-1.2, 3.5m
MBZ0680.02GBlue Liner, For Wire Ø1.0-1.2, 5.5m
16MBZ0173 Nut M10x1

BLACK WOLF is in no way affiliated with TRAFIMET. The parts advertised for sale are not genuine TRAFIMET parts, but are parts made for and by BLACK WOLF.

References to TRAFIMET machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine TRAFIMET parts in place of BLACK WOLF parts.
