BW POWERMAX1650P Without High Frequency machine air cooled plasma cutting torch
Standard Length: 7.5m
Air Pressure: 6.1bar
Duty Cycle 60%: 100A
0Standard Length: 7.5m
Air Pressure: 6.1bar
Duty Cycle 60%: 100A
Product Description
* Compatible Torch and Parts For HYPERTHERM
Product Specification

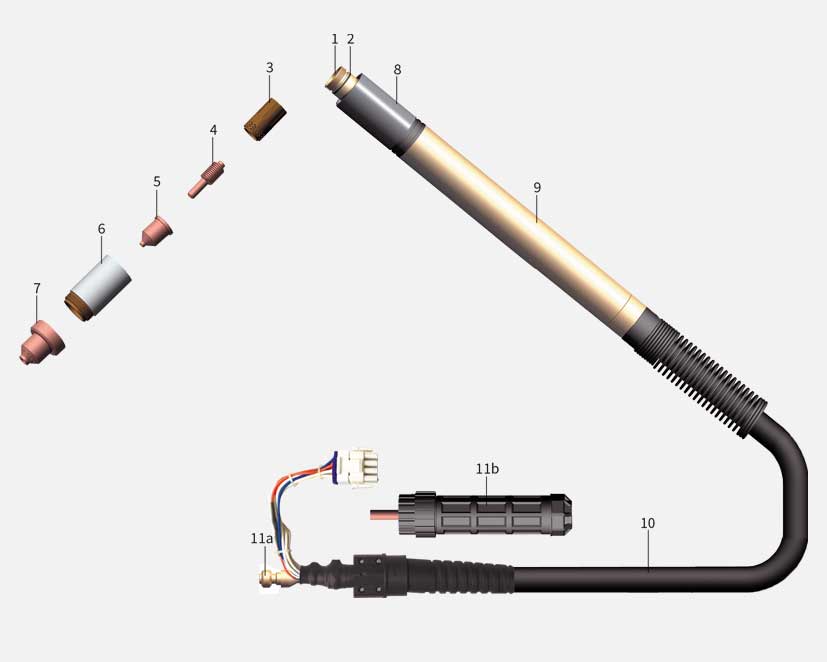

| No. | Order | Description | OEM p/n |
| PHP1900.07 | BW Powermax1650P Auto Torch ERT, 7.5m | ||
| 1 | PHP1911 | BW Powermax1650 Auto Torch Head | 228523 |
| 2 | PHP1913 | O-Ring | 58519 |
| 3 | PHP1936 | Swirl Ring | 220051 |
| 4 | PHP1931.01 | Electrode | 220037 |
| 5 | PHP1932.01 | Nozzle 1.5mm 100A | 220011 |
| 6 | PHP1935.01 | Retaining Cap | 220048 |
| 7 | PHP1934.01 | Shield | 220047 |
| 8 | PHP1942 | Install Sleeve | 128643 |
| 9 | PHP1921 | Auto Torch Handle | |
| 10 | PHP1950 | Cable Assembly | |
| 11a | PHP1983 | ERT Connector Repair | |
| 11b | PTF0272 | Central Adaptor |
BLACK WOLF is in no way affiliated with HYPERTHERM. The parts advertised for sale are not genuine HYPERTHERM parts, but are parts made for and by BLACK WOLF.
References to HYPERTHERM machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine HYPERTHERM parts in place of BLACK WOLF parts.
Performance parameter
Standard length: 7.6M
Air pressure: 6.1bar
Duty cycle 60%: 100A
