BW PT-120/BW PTM-120 Without High Frequency air cooled plasma cutting torch
BW PT-100/BW PTM-100 Low frequency air cooled plasma cutting torch Standard length:5M
Air pressure:4.5-5.5bar
Duty cycle 60%:100A
0BW PT-100/BW PTM-100 Low frequency air cooled plasma cutting torch Standard length:5M
Air pressure:4.5-5.5bar
Duty cycle 60%:100A
Product Description
Compatible torch and parts for TECMO
Patent numbe: ZL202130291873.3
Product Specification

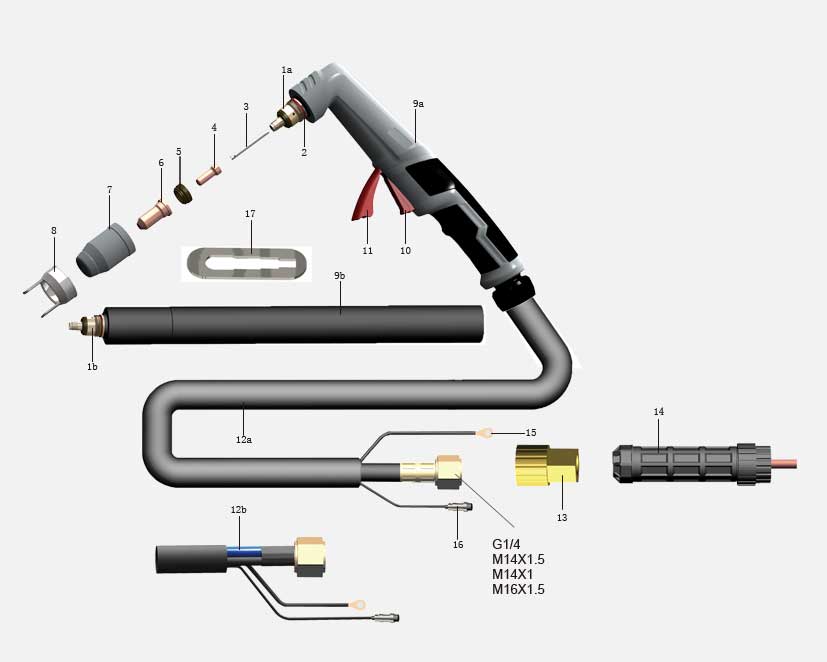

| No. | Order | Description | OEM p/n |
| PTC0300.05 | BW PT-120 Hand Torch M16×1.5, 5m | ||
| PTC0301.05 | BW PT-120 Hand Torch Cetral Adaptor, 5m | ||
| PTC0500.05 | BW PTM-120 Auto Torch M16×1.5, 5m | ||
| PTC0501.05 | BW PTM-120 Auto Torch Cetral Adaptor, 5m | ||
| 1a | PTC0310 | BW PT-120 Hand Torch Head | |
| 1b | PTC0511 | BW PTM-120 Auto Torch Head | |
| 2 | PTC0313 | O-Ring | |
| 3 | PTC0330 | Air Tube | 09700.48 |
| 4 | PTC0331 | Electrodes | 52556 |
| 5 | PTC0336.01 | Swirl Ring 30A-70A | 60025 |
| PTC0336.02 | Swirl Ring 80A-120A | 60026 | |
| 6 | PTC0332.01 | Nozzle 1.0mm 40-50A | 51246.10 |
| PTC0332.02 | Nozzle 1.1mm 50-60A | 51246.11 | |
| PTC0332.03 | Nozzle 1.2mm 60-70A | 51246.12 | |
| PTC0332.04 | Nozzle 1.4mm 80-90A | 51248.14 | |
| PTC0332.05 | Nozzle 1.5mm 100A | 51248.15 | |
| PTC0332.06 | Nozzle 1.6mm 100A-120A | 51248.16 | |
| 7 | PTC0334.01 | Shield 30A-70A | 60500 |
| PTC0334.02 | Shield 80A-120A | 60501 | |
| 8 | PTC0334.01 | Stand-off Guide | 60444 |
| 9a | PTF0220.01 | Handle For Hand Torch | |
| 9b | PTF1021 | Ø35 Handle For Auto Torch | |
| 10 | PTF0224.01 | Switch | |
| 11 | PTF0224.03 | Switch Protection Block | |
| 12a | PTC0350 | Gas Electrode Integrated Cable Assembly | |
| 12b | PTC0351 | Gas Electrode Separation Cable Assembly | |
| 13 | PPA0170 | Protection Nut | |
| 14 | PTF0272 | Central Adaptor | |
| 15 | PPA0169 | Pilot Arc Wire | |
| 16 | PPA0171 | 2-Pins Plug | |
| 17 | PTC033A | Spanner |
NOTE: Please specify the connector when ordering.
BLACK WOLF is in no way affiliated with TECMO. The parts advertised for sale are not genuine TECMO parts, but are parts made for and by BLACK WOLF.
References to TECMO machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine TECMO parts in place of BLACK WOLF parts.
Performance parameter
Standard Length: 5m
Air Pressure: 4.5-5.5bar
Duty Cycle 60%: 100A
