BW PT-20C Without High Frequency Air Cooled Plasma Cutting Torches
Standard Length: 4m
Air Pressure: 2.8-3.2bar
Duty Cycle: 35% 20A
0Standard Length: 4m
Air Pressure: 2.8-3.2bar
Duty Cycle: 35% 20A
Product Description
Compatible torch and parts for TECMO
Product Specification

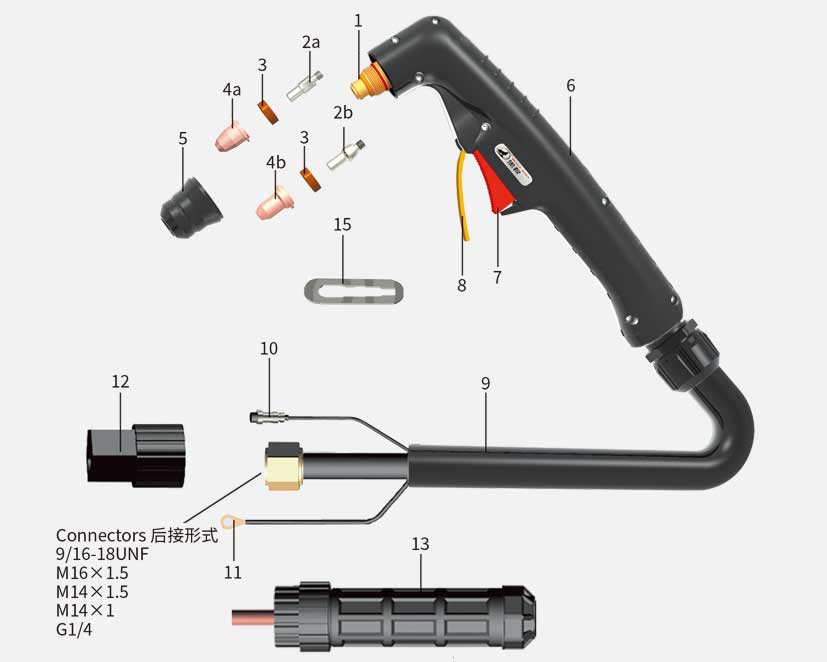

| No. | Order | Description | OEM |
| PTC0100.04 | BW PT-20C Hand Torch 4m | ||
| 1 | PTC0210 | BW PT-40 Hand Torch Head | |
| *2a | PTF0431.01 | BW S45 Electrode | |
| 2b | PTF0331.01 | Electrode | |
| *3 | PTF0436 | BW S45 Swirl Ring | |
| *4a | PTF0432.01 | BW S45 Nozzle 0.6mm 20A | |
| PTF0432.02 | BW S45 Nozzle 0.8mm 30A | ||
| 4b | PTC0232.01 | Pointed Nozzle 0.8mm 25A | |
| *5 | PTC0124.01 | Shield (2 Hole) | |
| 6 | PTC0120 | Handle,For Hand Torch | |
| 7 | MBZ0195 | Switch | |
| 8 | PTC0220.01 | Protection Block For Switch | |
| 9 | PTC0151.01 | Cable Assembly | |
| 10 | PPA0170 | 2-Pins Plug | |
| 11 | PPA0169 | Pilot Arc Wire | |
| 12 | PPA0170 | Protection Nut | |
| 13 | PTF0272 | Central Adaptor | |
| 14 | PTC013A | Spanner |
* Standard configuration
NOTE: Please specify the connector when ordering.
BLACK WOLF is in no way affiliated with TECMO. The parts advertised for sale are not genuine TECMO parts, but are parts made for and by BLACK WOLF.
References to TECMO machines, torches, and numbers are for your convenience only. We reserve the right to substitute genuine TECMO parts in place of BLACK WOLF parts.
Performance parameter
Standard Length: 5m
Air Pressure: 3.0-5.0bar
Duty Cycle 60%: 40A
