BW ROB350 Air Cooled Robot Welding Torch
Cooling Method: Gas
Duty Cycle: 300A-350A 80%
Wire Size: 0.8 ～1.2mm
0Cooling Method: Gas
Duty Cycle: 300A-350A 80%
Wire Size: 0.8 ～1.2mm
Product Description

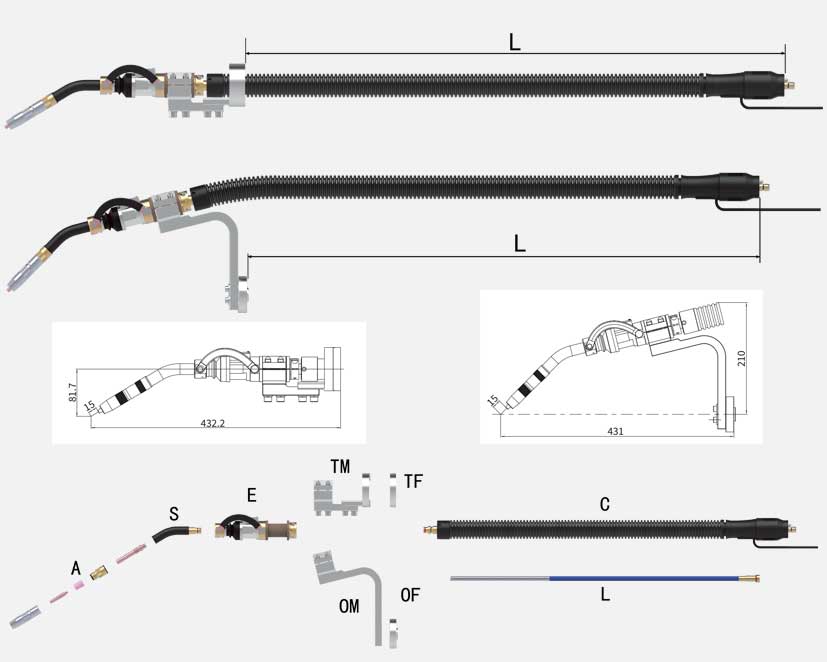

Product Specification
| Complete Torches | ||
| Order | Parts | Description |
| RBW0400.01 | BW ROB 350 Complete Torch-Through-Arm | |
| RBW0400.02 | BW ROB 350 Complete Torch-Over-Arm | |
| Parts | ||
| Order | Parts | Description |
| E | Safety-off Mechanism | |
| TM | Mounts for through arm | |
| OM | Mounts for over arm | |
| C | ROB 350 Cable assembly | |
| Swan neck | ||
| Order | Parts | Description |
| RBW0443 | S | Swan neck, 31° |
| Type A | ||
| Parts | Order | Description |
| A-1 | MPA0230.01 | Nozzle Ø11.5×73mm |
| MPA0230.02 | Nozzle Ø15×73mm | |
| A-2 | Contact tip | |
| A-3 | MPA0239 | Diffuser |
| A-4 | MOT0240 | Insulator |
| A-5 | RBW0435 | Tip holder |
| Parts | Order | Description |
| L | RBW0480.01 | Liner, for steel |
| RBW0480.02 | Liner, for Al |
| Contact tip | |
| Order | Description |
| RDZ0333.01 | Contact tip M6×45×0.8 |
| RDZ0333.02 | Contact tip M6×45×0.9 |
| RDZ0333.03 | Contact tip M6×45×1.0 |
| RDZ0333.04 | Contact tip M6×45×1.2 |
| RDZ0333.05 | Contact tip M6×45×1.4 |
| RDZ0333.06 | Contact tip M6×45×1.6 |
| RDZ0333.07 | Contact tip M6×45×0.8, Al |
| RDZ0333.08 | Contact tip M6×45×0.9, Al |
| RDZ0333.09 | Contact tip M6×45×1.0, Al |
| RDZ0333.10 | Contact tip M6×45×1.2, Al |
| RDZ0333.11 | Contact tip M6×45×1.4, Al |
| RDZ0333.12 | Contact tip M6×45×1.6, Al |
| RDZ0433.01 | Contact tip M6×42×0.8 |
| RDZ0433.02 | Contact tip M6×42×0.9 |
| RDZ0433.03 | Contact tip M6×42×1.0 |
| RDZ0433.04 | Contact tip M6×42×1.2 |
| RDZ0433.05 | Contact tip M6×42×1.4 |
| RDZ0433.06 | Contact tip M6×42×1.6 |
| RDZ0433.07 | Contact tip M6×42×0.8 Al |
| RDZ0433.08 | Contact tip M6×42×0.9 Al |
| RDZ0433.09 | Contact tip M6×42×1.0 Al |
| RDZ0433.10 | Contact tip M6×42×1.2 Al |
| RDZ0433.11 | Contact tip M6×42×1.4 Al |
| RDZ0433.12 | Contact tip M6×42×1.6 Al |
| Flange for Through arm | ||
| Order | Robot | Description |
| RBW0428.01 | ABB | IRB1200 |
| RBW0428.02 | ABB | IRB1410, IRB1600, IRB2400L |
| RBW0428.03 | ABB | IRB1520iD |
| RBW0428.04 | ABB | IRB2400-10-16, IRB2600 |
| RBW0428.05 | Yaskawa | MA1440 (AR1440), MA2010 (AR2010), MA3120, MH12 |
| RBW0428.06 | Yaskawa | MH6, SSF200, HP20D |
| RBW0428.07 | Efort | ER6 |
| RBW0428.08 | Chaifu | SF6-1440, SF6-C2080 |
| RBW0428.09 | Fanuc | R-0iB, 200iD |
| RBW0428.10 | Fanuc | 100ic, M10iA |
| RBW0428.11 | Fanuc | M10iD |
| RBW0428.12 | Balkal | BR-1510A, JHY-2010A, BR-1610A |
| RBW0428.13 | Kuka | KR5 R1400, KR10 R1420, KR8 R1620 |
| RBW0428.14 | Kuka | KR5 arc |
| RBW0428.15 | Hyundai | HA006B, HA006L, HH010L, HH020 |
| RBW0428.16 | Zhenkang | ZK1400-06 |
| RBW0428.17 | Crobotp | CRP-RH14-10-W, CRP-RH18-20-W, CRP-RH20-06-W |
| RBW0428.18 | Crobotp | CRP-RH14-10, CRP-RH18-20 |
| RBW0428.19 | JAKA | Zu etc |
| Flange for Over arm | ||
| Order | Robot | Description |
| RBW0428.01.01 | ABB | IRB1200 |
| RBW0428.02.02 | ABB | IRB1410, IRB1600, IRB2400L |
| RBW0428.01.02 | ABB | IRB1520iD |
| RBW0428.02.03 | ABB | IRB2400-10-16, IRB2600 |
| RBW0428.01.03 | Yaskawa | MA1440 (AR1440), MA2010 (AR2010), MA3120, MH12 |
| RBW0428.02.04 | Yaskawa | MH6, SSF200, HP20D |
| RBW0428.01.04 | Efort | ER6 |
| RBW0428.02.05 | Chaifu | SF6-1440, SF6-C2080 |
| RBW0428.01.05 | Fanuc | R-0iB, 200iD |
| RBW0428.02.06 | Fanuc | 100ic, M10iA |
| RBW0428.01.06 | Fanuc | M10iD |
| RBW0428.02.07 | Balkal | BR-1510A, JHY-2010A, BR-1610A |
| RBW0428.01.07 | Kuka | KR5 R1400, KR10 R1420, KR8 R1620 |
| RBW0428.02.08 | Kuka | KR5 arc |
| RBW0428.01.08 | Hyundai | HA006B, HA006L, HH010L, HH020 |
| RBW0428.02.09 | Zhenkang | ZK1400-06 |
| RBW0428.01.09 | Crobotp | CRP-RH14-10-W, CRP-RH18-20-W, CRP-RH20-06-W |
| RBW0428.02.10 | Crobotp | CRP-RH14-10, CRP-RH18-20 |
| RBW0428.01.10 | JAKA | Zu etc |
Performance parameter
Cooling method: Gas
Duty cycle: 300A-350A 80%
Wire size: 0.8-1.2mm
