BW 42G Air Cooled Robot Welding Torch
Cooling method:Gas
Duty cycle:420A 60%/300A 100% CO₂/350A 60%/250A 100% Mixed gases
Wire size:0.8-1.6mm
Duty cycle:420A 60%/300A 100% CO₂/350A 60%/250A 100% Mixed gases
Wire size:0.8-1.6mm
0
Product Description
* Compatible Torch and Parts For TBI
Product Specification

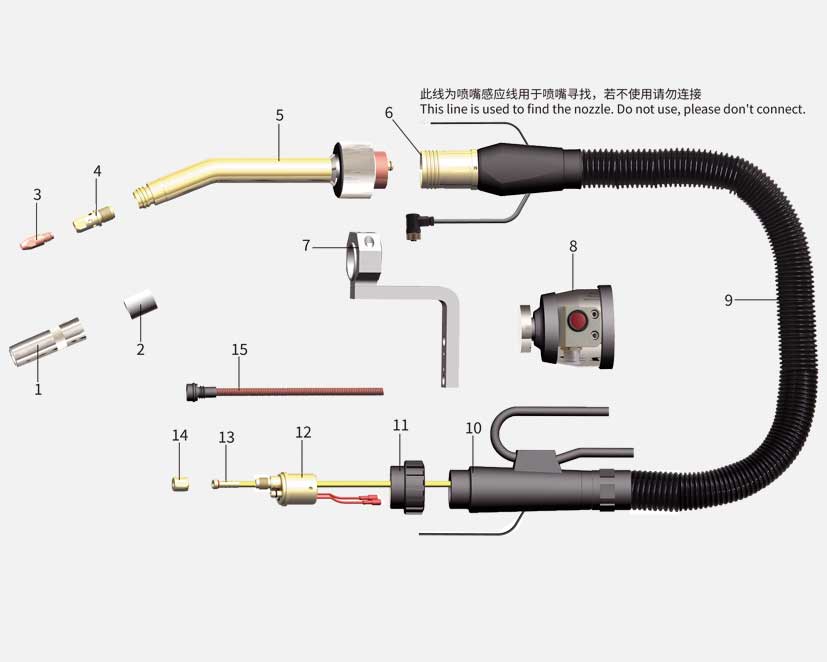

| No. | Order | Description | OEM p/n |
| RTB0200.15 | BW 42W Complete Torch 1.5m | ||
| 1 | RTB0130 | Nozzle Ø14mm | |
| 2 | MBZ0232.02 | M6×28×0.8R Contact Tip, E-Cu | |
| MBZ0232.04 | M6×28×1.0R Contact Tip, E-Cu | ||
| MBZ0332.01 | M6×28×1.2R Contact Tip, E-Cu | ||
| 3 | RTB0136 | Contact Tip Holder | |
| 4 | RTB0141 | Insulator | |
| 5 | RTB0243 | Swan Neck 22° | 673P001001 |
| 6 | RTB0142 | Clamp Module | |
| 7 | RTB0144 | Fixed Bracket | |
| 8 | RTB0137 | Safety-off Mechanism | |
| 9 | RTB0260 | Cable Assembly, 1.2m | 673P4R0C12 |
| 10 | MBZ0871 | Cable Support Machine Side | |
| 11 | MBZ0170 | Adapter Nut | 501.0213 |
| 12 | MBZ0872.02 | Central Connector WZ-2 | 501.0003 |
| 13 | MBZ0180.04 | Yellow Liner, For Wire Ø0.8-1.6, 1.5m | |
| 14 | MBZ0173 | Nut M10x1 | 501.0082 |
| 15 | RTB0387.01 | Liner, For Wire Ø0.8-1.6, 0.25m |
BLACK WOLF is in no way affiliated with TBI. The parts advertised for sale are not genuine TBI parts, but are parts made for and by BLACK WOLF.
References to TBI machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine TBI parts in place of BLACK WOLF parts.
