The Golden Globe ROB355 robot welding torch is specifically designed for automated production lines. It is compatible with the mig welding torch for robot system, features efficient cooling and can withstand high loads. It is suitable for welding in automotive manufacturing and heavy industry, ensuring a stable electric arc and a long service life cycle.
Product Description

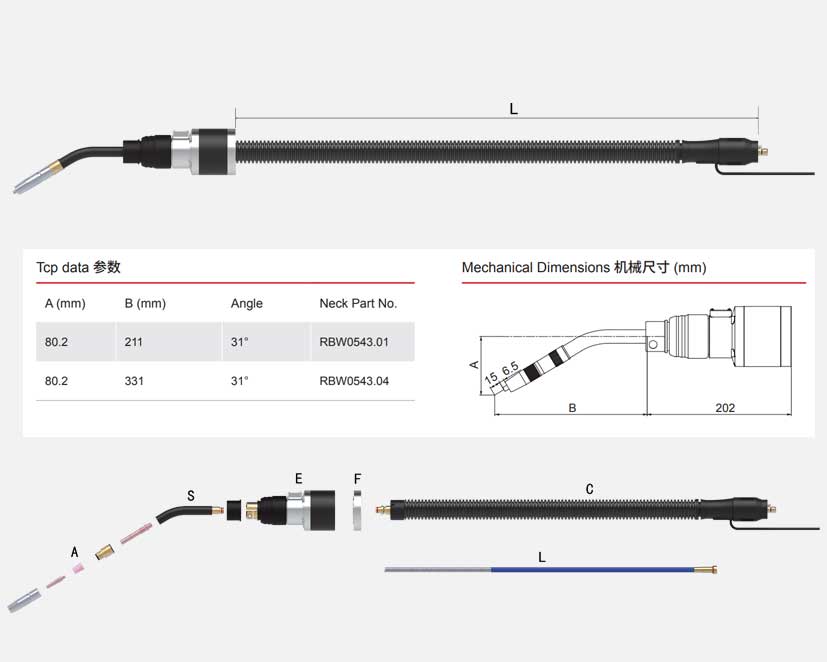

Product Specification
| Complete Torches | ||
| Order | Description | |
| RBW0500.01 | BW ROB 355 Complete Torch-through arm | |
| Parts | ||
| Parts | Description | |
| E | Safety-off Mechanism | |
| C | ROB 355 Cable assembly | |
| Swan neck | ||
| Order | Parts | Description |
| RBW0543.01 | S | Swan neck, 31° |
| RBW0543.04 | Swan neck long, 31° | |

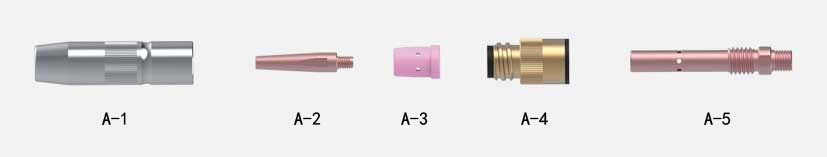

| Type A | ||
| Parts | Order | Description |
| A-1 | MPA0530.01 | Nozzle Ø11.5×73mm |
| MPA0530.02 | Nozzle Ø15×73mm | |
| A-2 | Contact tip | |
| A-3 | MPA0239 | Diffuser |
| A-4 | MOT0240 | Insulator |
| A-5 | RBW0535 | Tip holder |
| Liner | ||
| Parts | Order | Description |
| L | RBW0580.01 | Liner, for steel |
| RBW0580.02 | Liner, for Al | |
| Contact tip | |
| Order | Description |
| RDZ0333.01 | Contact tip M6×45×0.8 |
| RDZ0333.02 | Contact tip M6×45×0.9 |
| RDZ0333.03 | Contact tip M6×45×1.0 |
| RDZ0333.04 | Contact tip M6×45×1.2 |
| RDZ0333.05 | Contact tip M6×45×1.4 |
| RDZ0333.06 | Contact tip M6×45×1.6 |
| RDZ0333.07 | Contact tip M6×45×0.8, Al |
| RDZ0333.08 | Contact tip M6×45×0.9, Al |
| RDZ0333.09 | Contact tip M6×45×1.0, Al |
| RDZ0333.10 | Contact tip M6×45×1.2, Al |
| RDZ0333.11 | Contact tip M6×45×1.4, Al |
| RDZ0333.12 | Contact tip M6×45×1.6, Al |
| RDZ0433.01 | Contact tip M6×42×0.8 |
| RDZ0433.02 | Contact tip M6×42×0.9 |
| RDZ0433.03 | Contact tip M6×42×1.0 |
| RDZ0433.04 | Contact tip M6×42×1.2 |
| RDZ0433.05 | Contact tip M6×42×1.4 |
| RDZ0433.06 | Contact tip M6×42×1.6 |
| RDZ0433.07 | Contact tip M6×42×0.8 Al |
| RDZ0433.08 | Contact tip M6×42×0.9 Al |
| RDZ0433.09 | Contact tip M6×42×1.0 Al |
| RDZ0433.10 | Contact tip M6×42×1.2 Al |
| RDZ0433.11 | Contact tip M6×42×1.4 Al |
| RDZ0433.12 | Contact tip M6×42×1.6 Al |
| Flange | ||
| Order | Robot | Description |
| RBW0528.01 | ABB | IRB1200 |
| RBW0528.02 | ABB | IRB1410, IRB1600, IRB2400L |
| RBW0528.03 | ABB | IRB1520iD |
| RBW0528.04 | ABB | IRB2400-10-16, IRB2600 |
| RBW0528.05 | Yaskawa | MA1440 (AR1440), MA2010 (AR2010), MA3120, MH12 |
| RBW0528.06 | Yaskawa | MH6, SSF200, HP20D |
| RBW0528.07 | Efort | ER6 |
| RBW0528.08 | Chaifu | SF6-1440, SF6-C2080 |
| RBW0528.09 | Fanuc | R-0iB, 200iD |
| RBW0528.10 | Fanuc | 100ic, M10iA |
| RBW0528.11 | Fanuc | M10iD |
| RBW0528.12 | Balkal | BR-1510A, JHY-2010A, BR-1610A |
| RBW0528.13 | Kuka | KR5 R1400, KR10 R1420, KR8 R1620 |
| RBW0528.14 | Kuka | KR5 arc |
| RBW0528.15 | Hyundai | HA006B, HA006L, HH010L, HH020 |
| RBW0528.16 | Zhenkang | ZK1400-06 |
| RBW0528.17 | Crobotp | CRP-RH14-10-W, CRP-RH18-20-W, CRP-RH20-06-W |
| RBW0528.18 | Crobotp | CRP-RH14-10, CRP-RH18-20 |
| RBW0528.19 | JAKA | Zu etc |
