BW 200A Air cooled MIG/MAG welding torch
Rating:200A CO₂/160A Mixed Gases
Duty cycle: 60%
Wire size: 0.8~1.2 mm
//www.blackwolfwelding.com/uploadfiles/128.1.164.122/webid2112/source/202303/168015368254.jpg
Product Detail

Product Description


Compatible Torch and Parts For Panasonic

Patent number: ZL201530291711.4

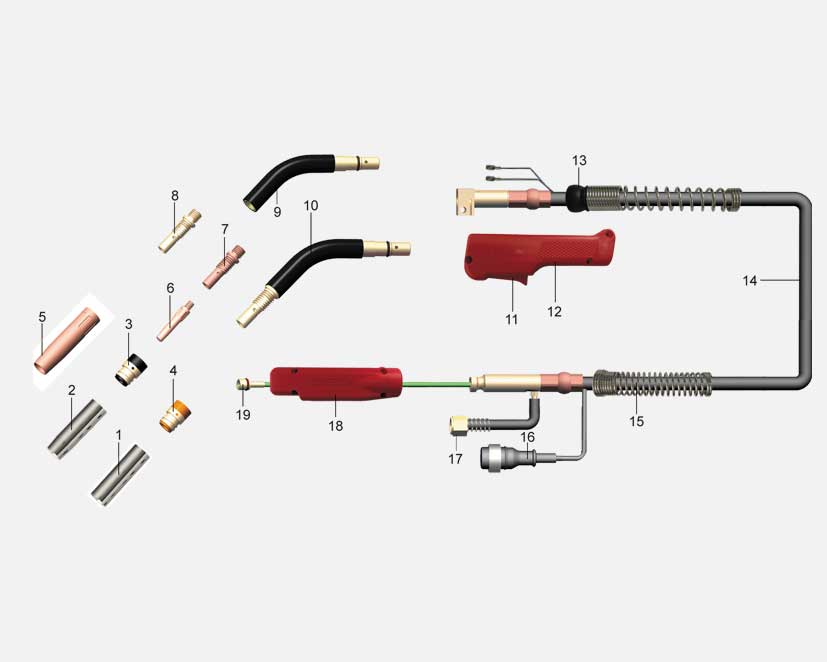

Product structure of the 200A Air cooled MIG/MAG welding torch


Product Specification


No.OrderDescriptionOEM p/n

MPA0100.03 BW 200A Complete Torch (BWM-IV RED-BLACK) 3m

MPA0101.05BW 200A Complete Torch (BWM-IV RED-BLACK) 5m

MPA0102.03 BW 200A Complete Torch (BWM-IV BLUE-GRAY) 3m

MPA0103.05 BW 200A Complete Torch (BWM-IV BLUE-GRAY) 5m
1MPA0130.01 Separable Cylindrical Nozzle Ø15mm
2MPA0130.02 Separable Conical Nozzle Ø13mm
3MPA0140.01 Used With Separable Nozzle, Black Insulator
4MPA0140.02 Used With Separable Nozzle, Yellow Insulator
5MPA0130.03 Self-insulater Nozzle Ø13mm TGN01208
6MPA0132.01 M6x45x0.8 Contact Tip, E-Cu

MPA0132.02M6x45x0.9 Contact Tip, E-Cu

MPA0132.03 M6x45x1.0 Contact Tip, E-Cu

MPA0132.04 M6x45x1.2 Contact Tip, E-Cu

MPA0133.01 M6x45x0.8 Contact Tip, CuCrZr TET00841

MPA0133.02 M6x45x0.9 Contact Tip, CuCrZr TET00958

MPA0133.03M6x45x1.0 Contact Tip, CuCrZr TET01054

MPA0133.04 M6x45x1.2 Contact Tip, CuCrZr TET01266
7MPA0135.01 Copper Contact Tip Holder M10

MPA0135.02 Copper Contact Tip Holder M10x1
8MPA0136.01 Brass Contact Tip Holder M10

MPA0136.02 Brass Contact Tip Holder M10x1
9MPA0143.01 Swan Neck Separable M10

MPA0143.02 Swan Neck Separable M10x1
10MPA0143.03 Swan Neck TCU20111
11MPA0195.06 Switch
12a MPA0127.01 Handle BWM-IV (RED-BLACK)
12b MPA0127.02 Handle BWM-IV (BLUE-GRAY)
13MPA0196 Front Cable Support Spring
14MPA0160.01Industrial Cable Assembly 18mm2, 3m

MPA0160.02Industrial Cable Assembly 18mm2, 5m

MPA0160.03Practical Cable Assembly 16mm2, 3m

MPA0160.04Practical Cable Assembly 16mm2, 5m

MPA0160.05Economical Cable Assembly 12mm2, 3m

MPA0160.06Economical Cable Assembly 12mm2, 5m
15MPA0197 Back Cable Support Spring
16MPA0174Control Lead Plug
17MPA0181Nut
18MPA0171 Cable Support Machine Side
19MPA0181.01F Green Liner, For Wire Ø0.8-1.0, 3.5m

MPA0181.01G Green Liner, For Wire Ø0.8-1.0, 5.5m


BLACK WOLF is in no way affiliated with PANASONIC. The parts advertised for sale are not genuine PANASONIC parts, but are parts made for and by BLACK WOLF.

References to PANASONIC machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine PANASONIC parts in place of BLACK WOLF parts.



Handles(Color and style can be customized)


200A Air cooled MIG/MAG welding torch Handles


200A Air cooled MIG/MAG welding torch Handles


200A Air cooled MIG/MAG welding torch Handles


200A Air cooled MIG/MAG welding torch Handles
