BW 500A Air cooled MIG/MAG welding torch
Rating:500A CO₂/350A Mixed Gases
Duty cycle:60%
Wire size:1.2~1.6 mm
Duty cycle:60%
Wire size:1.2~1.6 mm
0
Product Description
Patent number: ZL201530291711.4
Compatible Torch and Parts For Panasonic

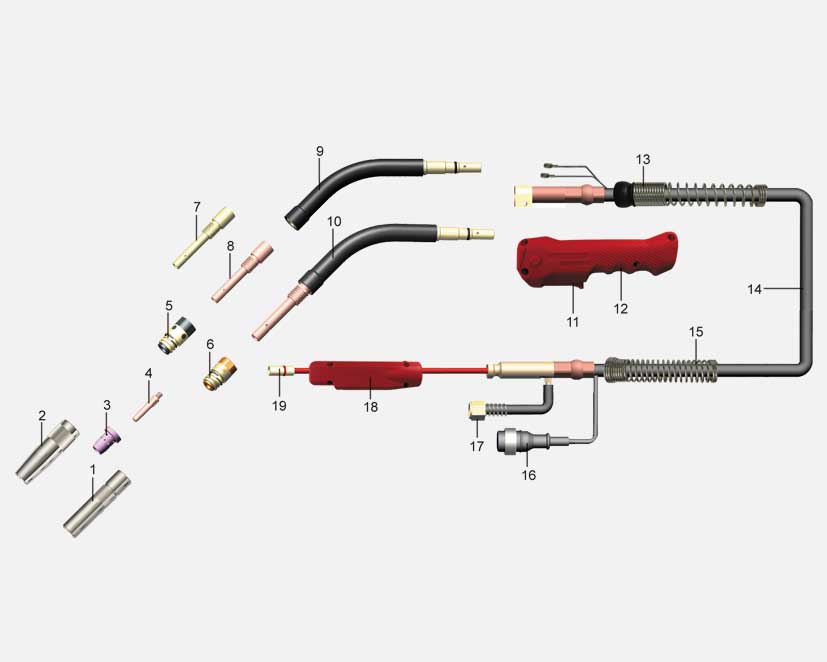

Product Specification
| No. | Order | Description | OEM p/n |
| MPA0300.03 | BW 500A Complete Torch (BWM-V RED-BLACK) 3m | ||
| MPA0301.05 | BW 500A Complete Torch (BWM-V RED-BLACK) 5m | ||
| MPA0302.03 | BW 500A Complete Torch (BWM-V BLUE-GRAY) 3m | ||
| MPA0303.05 | BW 500A Complete Torch (BWM-V BLUE-GRAY) 5m | ||
| 1 | MPA0330.01 | Cylindrical Nozzle Ø18.7mm | TGN00014 |
| 2 | MPA0330.02 | Conical Nozzle Ø14mm | TGN00060 |
| 3 | MPA0339 | Gas Diffusor | TGR00902 |
| 4 | MPA0132.03 | M6x45x1.2 Contact Tip, E-Cu | |
| MPA0132.04 | M6x45x1.4 Contact Tip, E-Cu | ||
| MPA0332.01 | M6x45x1.6 Contact Tip, E-Cu | ||
| MPA0133.04 | M6x45x1.2 Contact Tip, CuCrZr | TET01266 | |
| MPA0333.01 | M6x45x1.4 Contact Tip, CuCrZr | TET01433 | |
| MPA0333.02 | M6x45x1.6 Contact Tip, CuCrZr | TET0167 | |
| 5 | MPA0340.01 | Black Insulator | TFZ00006 |
| 6 | MPA0340.02 | Yellow Insulator | |
| 7 | MPA0336 | Brass Contact Tip Holder | |
| 8 | MPA0335 | Copper Contact Tip Holder | |
| 9 | MPA0343.01 | Swan Neck Separable | TSM04708 |
| 10 | MPA0343.02 | Swan Neck | TCU00006 |
| 11 | MPA0195.06 | Switch | |
| 12a | MPA0227.01 | Handle BWM-V (RED-BLACK) | |
| 12b | MPA0227.02 | Handle BWM-V (BLUE-GRAY) | |
| 13 | MPA0296 | Front Cable Support Spring | |
| 14 | MPA0360.01 | Industrial Cable Assembly 18mm2, 3m | |
| MPA0360.02 | Industrial Cable Assembly 18mm2, 5m | ||
| MPA0360.03 | Practical Cable Assembly 16mm2, 3m | ||
| MPA0360.04 | Practical Cable Assembly 16mm2, 5m | ||
| MPA0360.05 | Economical Cable Assembly 12mm2, 3m | ||
| MPA0360.06 | Economical Cable Assembly 12mm2, 5m | ||
| 15 | MPA0297 | Back Cable Support Spring | |
| 16 | MPA0174 | Control Lead Plug | TWU18101 |
| 17 | MPA0181 | Nut | |
| 18 | MPA0171 | Cable Support Machine Side | |
| 19 | MPA0281.02F | Blue Liner, For Wire Ø1.0-1.2, 3.5m | |
| MPA0281.02G | Blue Liner, For Wire Ø1.0-1.2, 5.5m |
BLACK WOLF is in no way affiliated with PANASONIC. The parts advertised for sale are not genuine PANASONIC parts, but are parts made for and by BLACK WOLF.
References to PANASONIC machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine PANASONIC parts in place of BLACK WOLF parts.
Handles（Color and style can be customized）
